Choose an Online Signals display mode

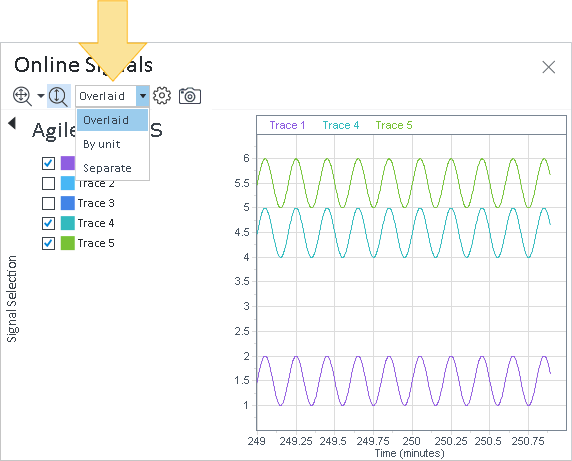

  1. Open the Online Signals window.

  2. Click the down arrow and select a display mode from the list.

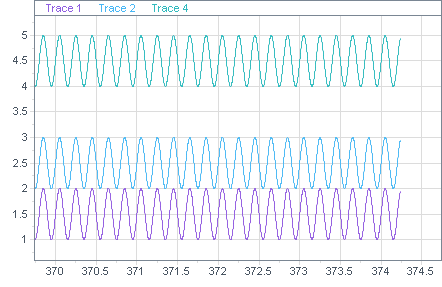

  • Overlaid
    All the signals selected are shown together. Selecting one of the two signals displayed (Trace 1, Trace 3, or Trace 4, in this example) will bold that signal line and display that signal's Y-axis units on the left.

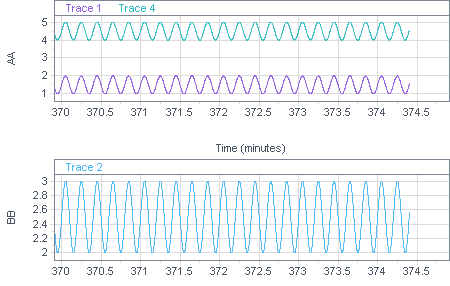

  • By unit
    Signals that use the same measurement unit (for example, bar, %, etc.) are shown in panels together.

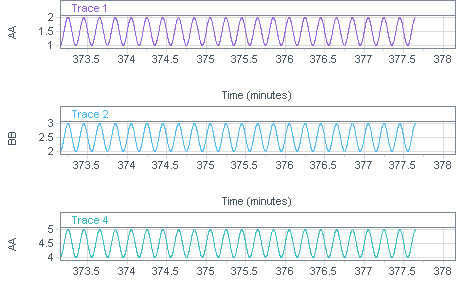

  • Separate
    Each signal is shown in a separate panel.
