Use the sample tray to select sequence vials

You can graphically select vial locations in the sample tray to define them in the Sequence table. The sample tray also allows the graphical selection of fraction start and recovery locations. Selections in the sample tray can be used to populate the sample vial, fraction start location, and recovery location values quickly.

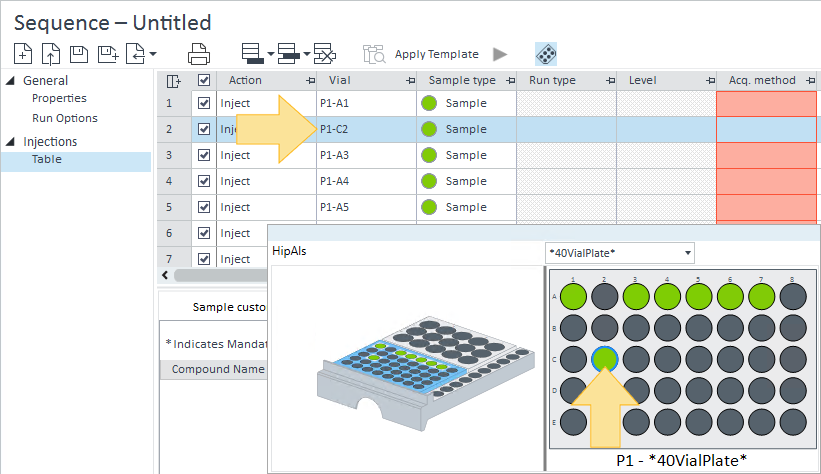

When one row is selected in the Sequence table, select a vial, fraction, or recovery location in the sample tray to update the value in the Sequence table for the selected line.

When any number of rows are selected in the Sequence table, the corresponding vials are highlighted in the sample tray by a blue circle.

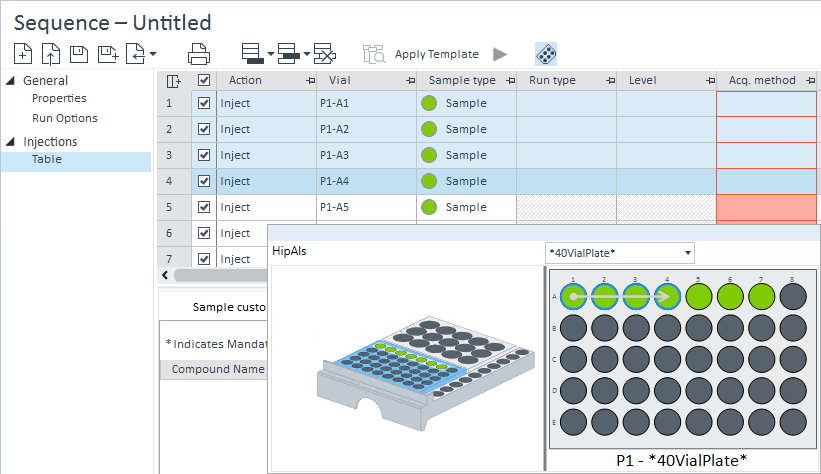

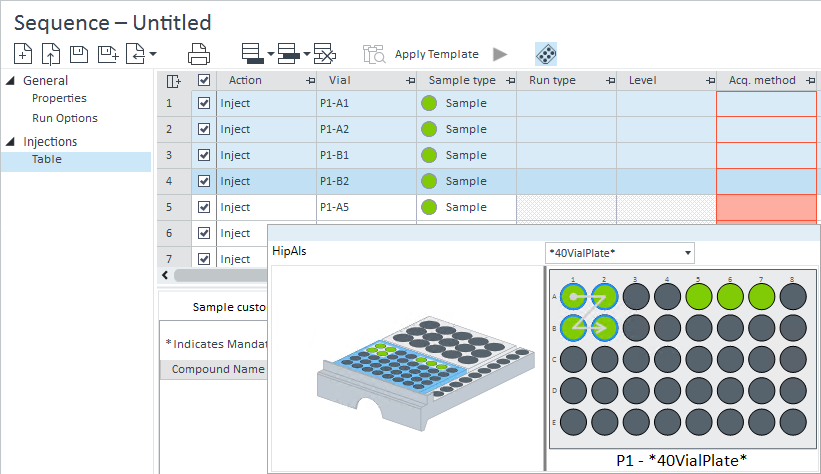

When multiple rows are selected in the Sequence table, click and drag a selection in the sample tray to update the selected rows with the selected vials. Vials are defined sequentially according to the pattern displayed while dragging on the sample tray. Click and drag selections for multiple rows is not available when updating the fraction start or recovery locations.

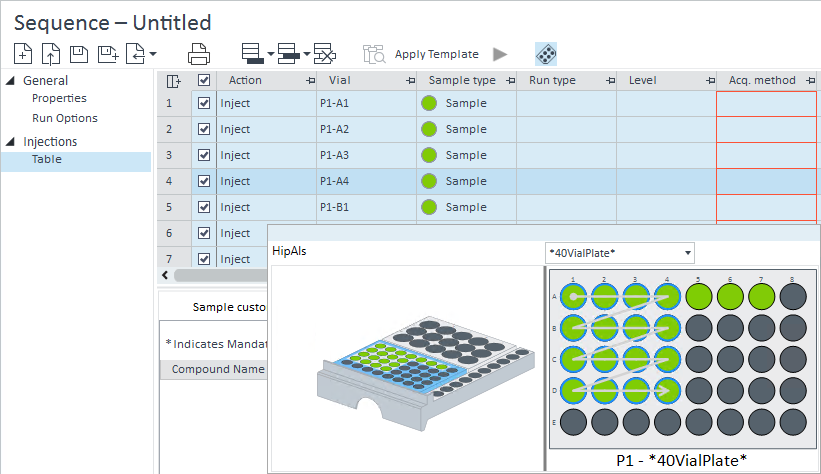

If more vial locations are selected in the sample tray than there are number of rows selected in the Sequence table, additional lines are added to the Sequence table.
