Add BootP settings

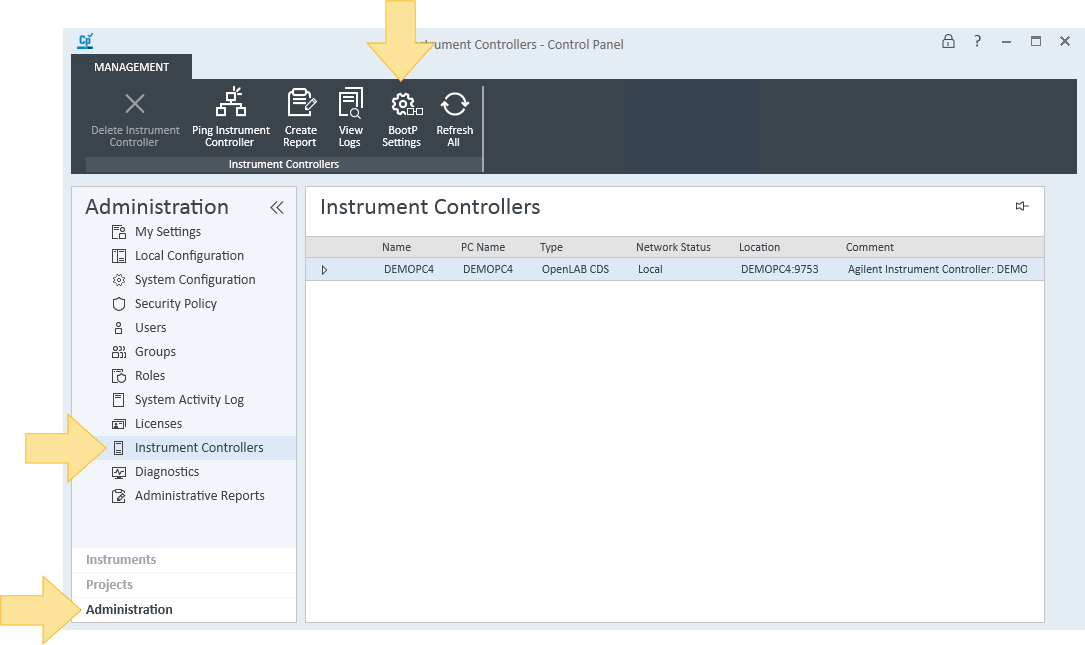

1. Click Administration > Instrument Controllers.

2. Select an instrument controller and click BootP Settings.




3. Click Add.

4. Enter the:

1. 1. • MAC Address (for example, 00-13-21-5B-85-E4). To get the MAC address, see Copy MAC Address or Save MAC Address.

      • IP Address (for example, 16.32.110.117)

      • Description

      • Subnet Mask - This box is automatically filled with the default setting. Enter the correct values for your network setup.

      • Gateway - This box is automatically filled with the default setting. Enter the correct values for your network setup.

5. Click OK.
