Baseline correction mode: no penetration

When this option is selected, each peak cluster is searched for baseline penetrations. If penetrations are found, the start and/or end points of the peak are shifted until there are no penetrations left.

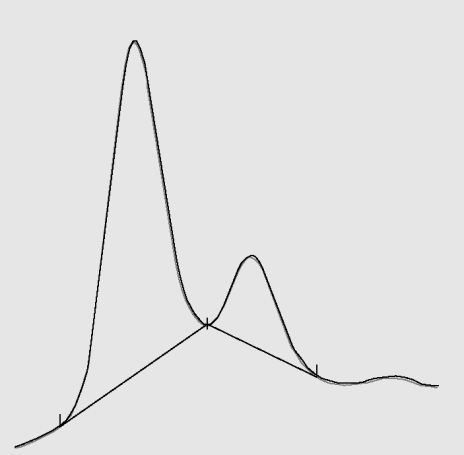

Baseline correction mode Classical

Baseline correction mode No penetration

NOTE

The baseline correction mode No penetration is not available for solvent peaks, with their child peaks and shoulders.
