Baseline correction mode: Classical

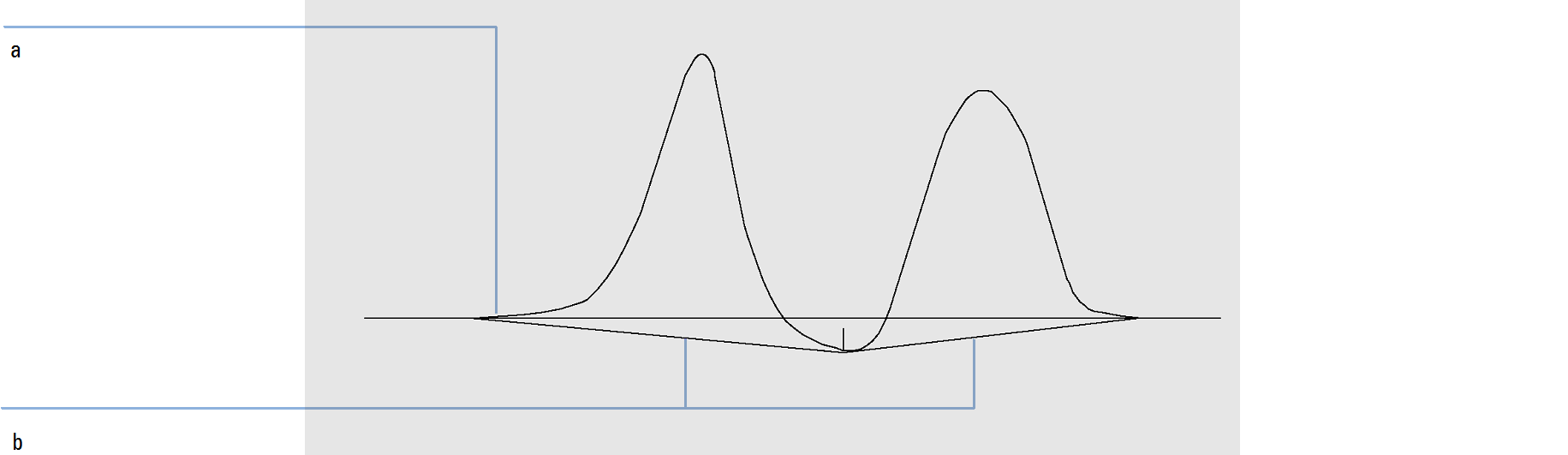

A penetration occurs when the signal drops below the constructed baseline (point a in Baseline Penetration).



Baseline Penetration

If a baseline penetration occurs, that part of the baseline may be reconstructed, as shown by points b in Baseline Penetration. You can use the following correction modes to remove all baseline penetrations:

• No penetration

• Advanced (optimized baseline)

• Advanced+ (optimized baseline and shoulder detection)
