Hints for choosing the smallest peak range

Use one of the following approaches to define the smallest peak range:

• Move the mouse over the green Smallest Peak Range box and drag the entire selector.

• Move the mouse over the individual green lines to adjust the smallest peak range start and end time.

• Enter the start and end time manually into the corresponding input fields.

• Right-click the peak that you want to use as smallest peak, and select Move smallest peak range here.

When choosing the smallest peak range, please note the following:

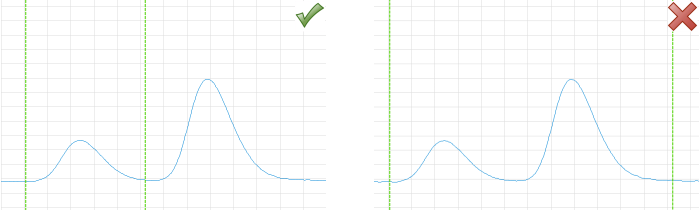

• Select the smallest peak with the smallest width. Do not have multiple separated peaks in the range.

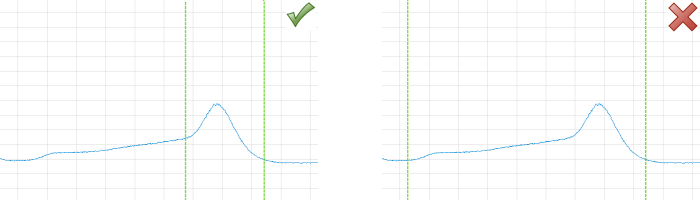

• Choose the start and end time close to the steep slope of the peak. Do not include baseline drift or pseudo peaks.

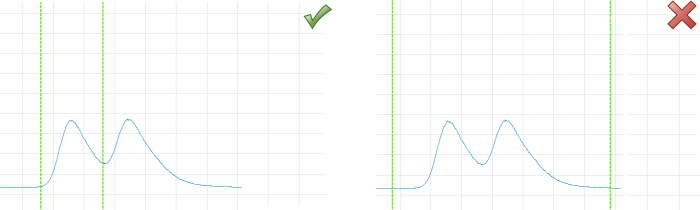

• Select a single peak with the smallest width in a cluster. Do not select peak clusters.
