Definition of a named group

The named group consists of user-selected compounds and timed groups. Each compound or timed group is identified and quantified on its own. ESTD and ISTD calculations are based on the calibration data of the individual compounds. The calculated group area, height, amount, and concentration of the group are the sum of the individual areas, heights, amounts, and concentrations. The named group itself is not calibrated. One compound can be in multiple named groups.

The expected retention time of the group is only for sorting purposes and can be entered manually.

The named group corresponds to the Named Peaks group in OpenLab EZChrom.

The following example shows two named groups where one compound is contained in both groups:

Groups	Group 1	Group 2
Included compounds	C1
	C2
		C3
	C4	C4
		C5
		C6

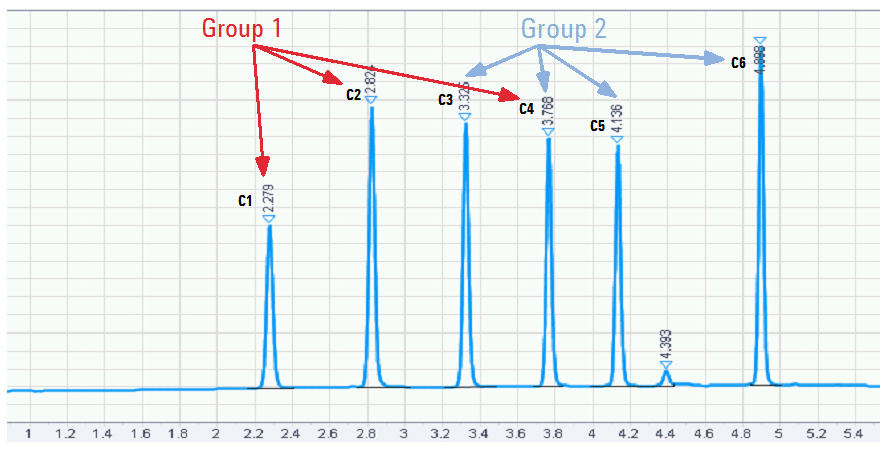

Example: Named groups
