Configure a CI source with JetClean

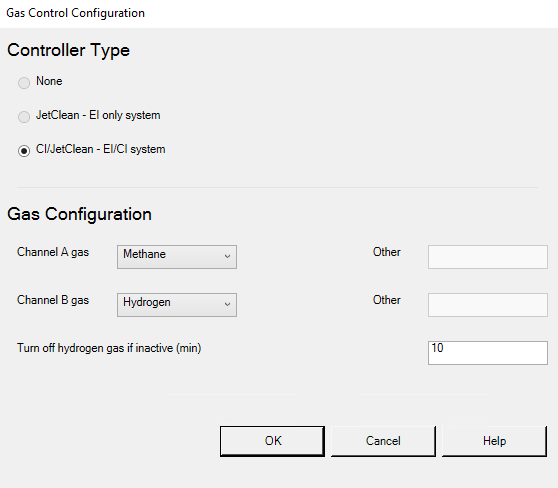

For a CI Source, you will see a dialog similar to the one shown below. To configure the instrument to use the JetClean function:

1. JetClean - EI/CI system is automatically selected. The None and JetClean - EI only system are not available.

2. For Channel A, select the CI reagent gas.

3. For Channel B, select:

• Hydrogen if you are using a JetClean system.

• An alternate CI reagent gas if you are not using a JetClean system.

4. If you selected Hydrogen for Channel B, enter the time in minutes that the hydrogen gas should be shut off when inactive. (This example shows 10 minutes.

5. If you select Other in either Channel A or B, enter the appropriate gas name in the location provided.

6. Click OK to return to the 597xMSD Configuration dialog.
