Configure an HES or EI source with JetClean

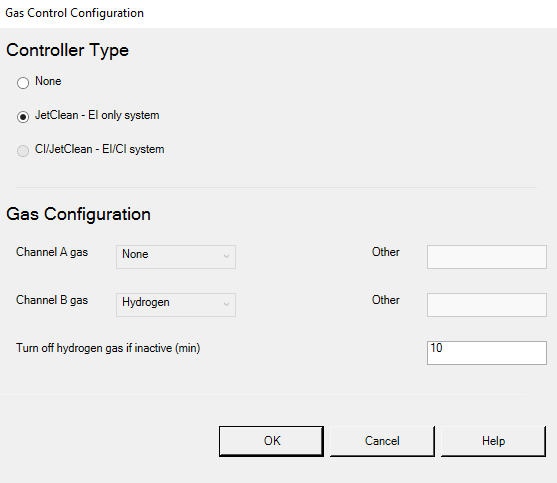

For an EI or HES Source, you will see a dialog similar to the one shown below. To configure the instrument to use the JetClean function:

  1. Select JetClean - EI only system. The Gas Configuration automatically changes to configure Channel A as None, and Channel B as Hydrogen. These cannot be changed.

  2. Enter the time in minutes that the hydrogen gas should be shut off when inactive. (This example shows 10 minutes.)

  3. Click OK to return to the 597xMSD Configuration dialog.
