Configure an HES or EI source without JetClean

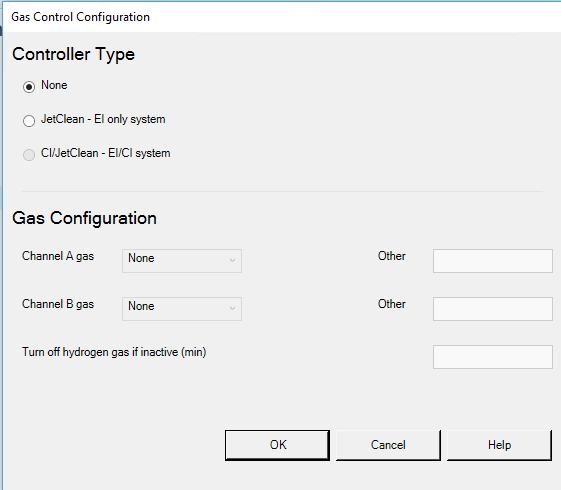

For an EI or HES Source you will see a dialog similar to the one shown below. To configure the instrument to work without using the JetClean function:

1. Select None. The channel A and channel B configurations options are set to None and cannot be modified.

2. Click OK to return to the 597xMSD Configuration dialog.
