Peak Start/Stop Criteria

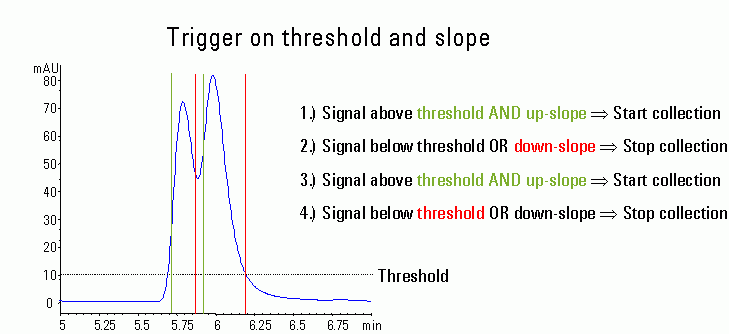

The peak-start criterion is met if the peak signal exceeds the specified threshold AND the up-slope is equal to or greater than the specified up-slope value.

The peak ends when the peak signal is lower than the specified threshold OR the down-slope is equal to or less than the specified down-slope value OR the max. peak duration is exceeded.
