2D-LC Valve Topologies

The following 2D-LC-supported valve topologies (concurrent and countercurrent) are determined by the connections to the valve. For additional information, see the User Guide:

With ASM

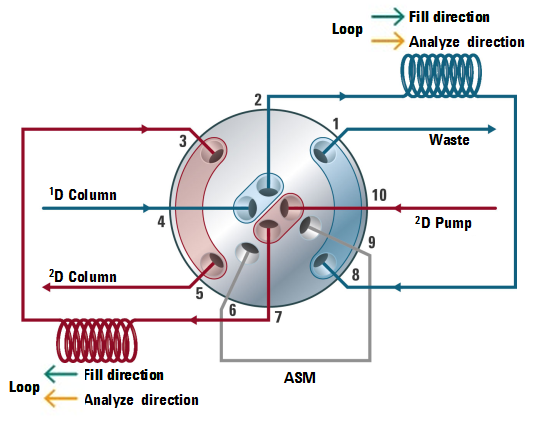

2D-LC Valve ASM 2 loops (concurrent)2D-LC Valve ASM 2 loops (concurrent)

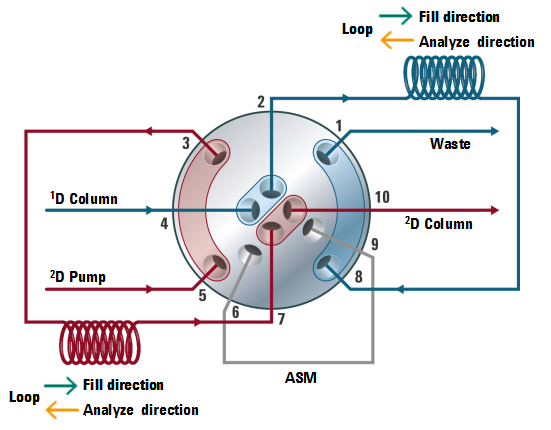

2D-LC Valve ASM 2 loops (countercurrent)2D-LC Valve ASM 2 loops (countercurrent)

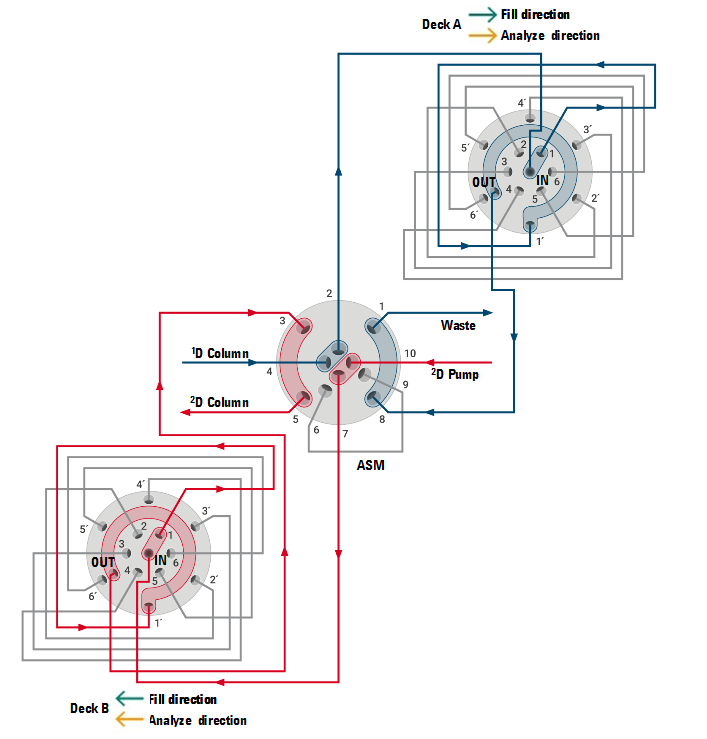

2D-LC Valve ASM 2x6 loops (concurrent)2D-LC Valve ASM 2x6 loops (concurrent)

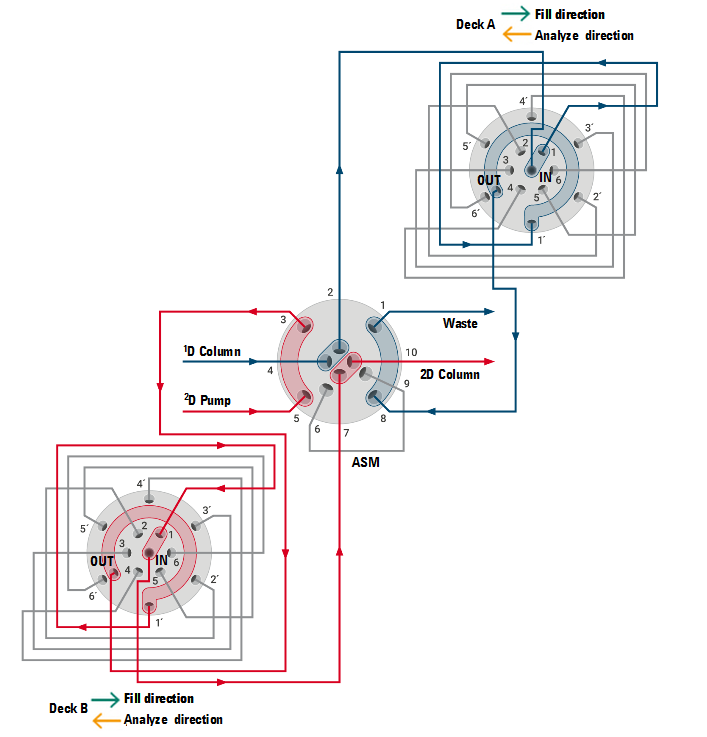

2D-LC Valve ASM 2×6 loops (countercurrent)2D-LC Valve ASM 2×6 loops (countercurrent)

Without ASM

2pos/4port duo 2 loops (concurrent)2pos/4port duo 2 loops (concurrent)

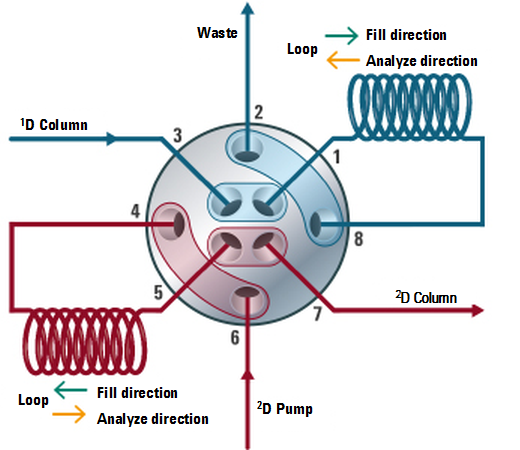

2pos/4port duo 2 loops (countercurrent)2pos/4port duo 2 loops (countercurrent)

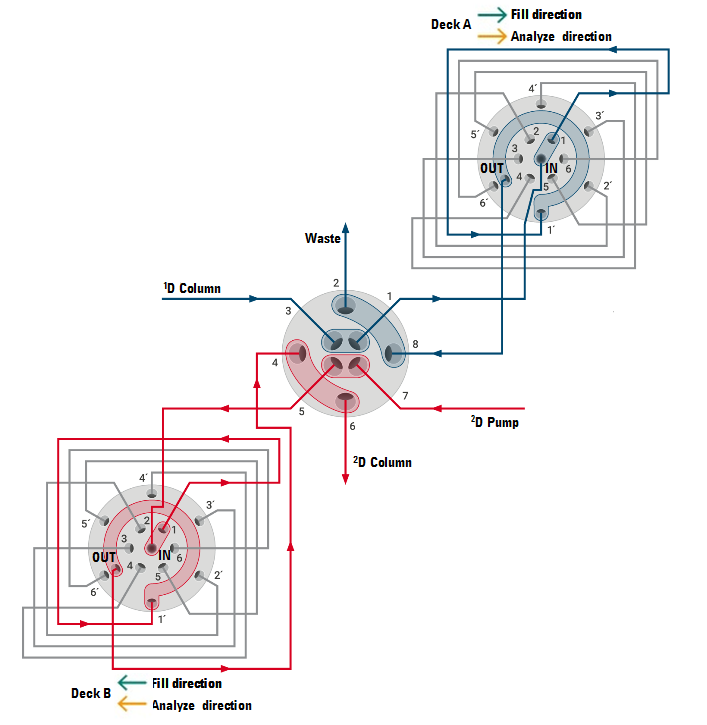

2pos/4port duo 2×6 loops (concurrent)2pos/4port duo 2×6 loops (concurrent)

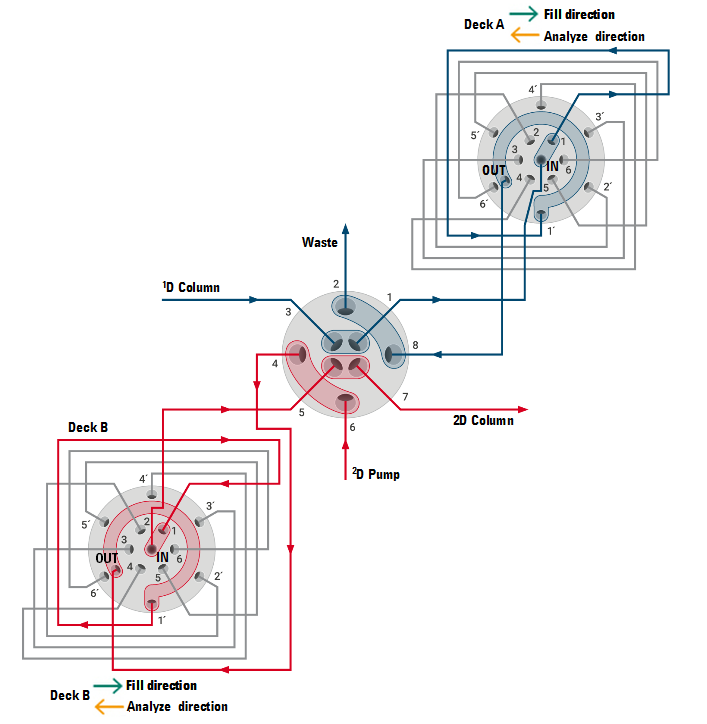

2pos/4port duo 2×6 loops (countercurrent)2pos/4port duo 2×6 loops (countercurrent)

Single Loop Configurations

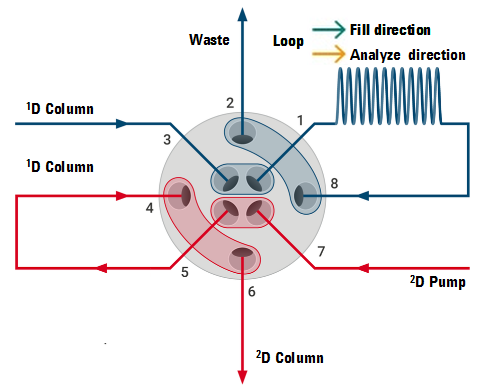

Single-loop (concurrent)Single-loop (concurrent)

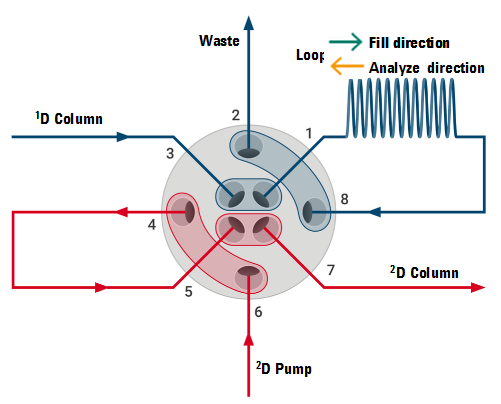

Single-loop (countercurrent)Single-loop (countercurrent)
