Put the SQ instrument in Standby (LC/MS)
Use the commands in the shortcut menu for the SQ device to put the instrument in Standby for LC/MSD iQ instruments.

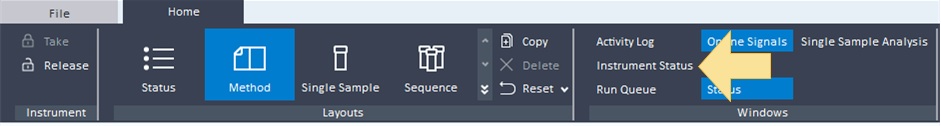

If needed, click Instrument Status.

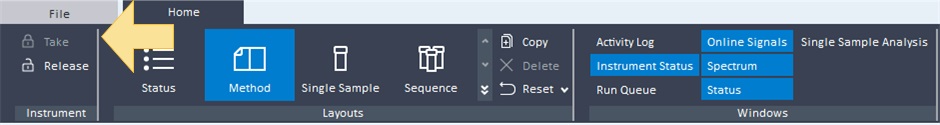

If needed, click Take. In this image, Take is already selected.
In the Instrument Status window, click the Dashboard tab.
Right-click the SQ device, and select Standby. The SQ is in standby and not ready to run.
For 6120 and 6130 LC/MS, 6125 LC/MSD, and 6135 LC/MSD XT instruments, the default standy settings are as follows:
ESI
AJS
APCI
MMI
Drying Gas Temp
300
300
300
300
Drying Gas Flow
3
3
3
3
Nebulizer Pressure
15
15
15
15
Sheath Gas Temperature
n/a
125
n/a
n/a
Sheath Gas Flow
n/a
3
n/a
n/a
Vaporizer
n/a
n/a
23
23
Capillary Voltage
0
0
0
0
Nozzle Voltage
n/a
0
n/a
0
Needle Current
n/a
n/a
0
0
For LC/MSD iQ, Pro iQ, and Pro iQ Plus instruments, the default standy settings are as follows:
ESI
AJS
APCI
MMI
Drying Gas Temp
300
300
300
300
Drying Gas Flow
3
3
3
3
Nebulizer Pressure
15
15
15
15
Sheath Gas Temperature
n/a
150
n/a
n/a
Sheath Gas Flow
n/a
3
n/a
n/a
Vaporizer
n/a
n/a
150
150
Capillary Voltage
0
0
0
0
Nozzle Voltage
n/a
0
n/a
0
Needle Current
n/a
n/a
0
0
