Add single row of tabular method information

If a method contains tabular information, such as the solvent composition that changes over time, you can report the single rows of the table.

Prerequisites

Load a data file that contains a processing method or acquisition method.

1. Drag one of the single method table row snippets (for example, Method Information > Single Acquisition Method Table Row) to the report template.

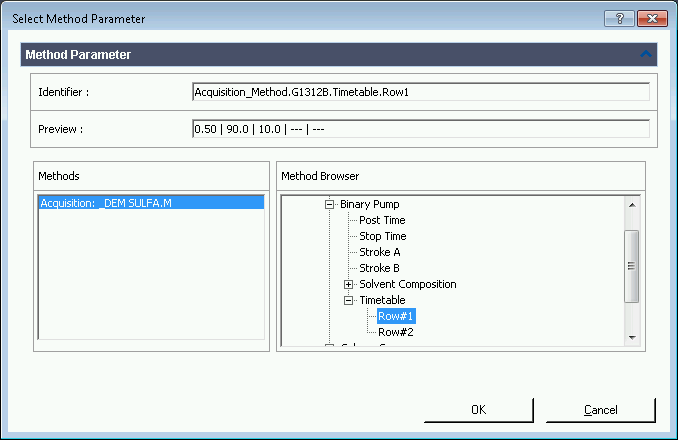

The Select Method Parameter dialog opens.

If the loaded data does not contain a method, the dialog will be empty.

2. In the Methods field, all methods are listed that are present in the loaded data. Select the required method.

3. In the Method Browser field, expand the tree and select the required method table row.



4. Click OK.

This table row contains only the values. You must add the headers separately. If you want to add an entire table, use the Method Information Multi Column or Method Information Single Column snippets and filter them for the required sections.
