MS Graphical Peak Purity Results

With the MS Graphical Peak Purity Results snippet, you show the spectra of all TIC peaks and the extracted chromatograms of the ions in each of the peaks.

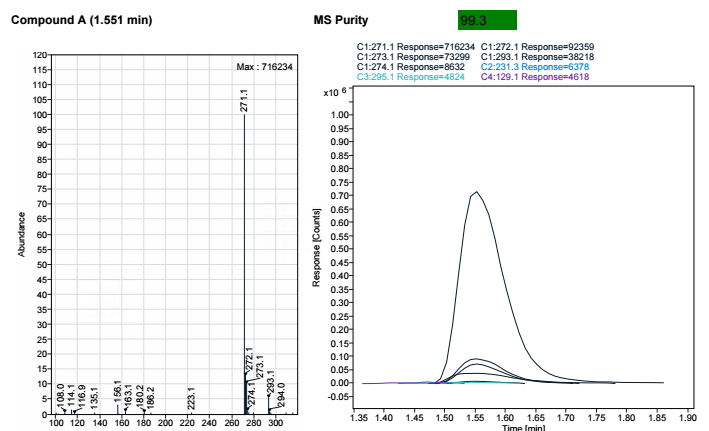

MS Graphical Peak Purity Results snippet, overlaid

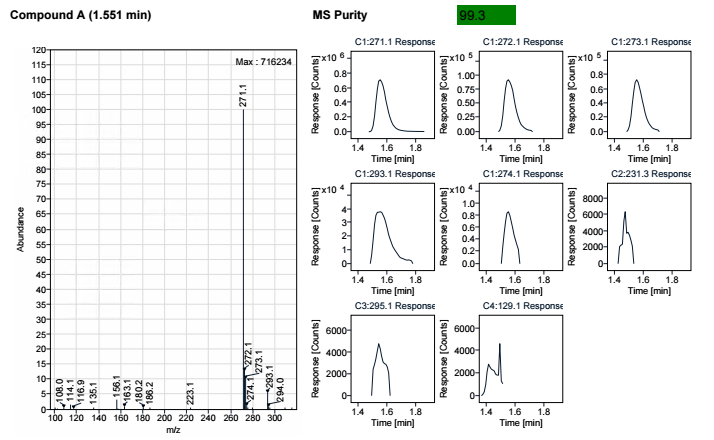

MS Graphical Peak Purity Results snippet, separate

The snippet contains the following information:

• Compound name, if identified

• Peak retention time

• Color coded MS peak purity results (green = passed, red = failed, yellow = unknown)

• Spectrum of the TIC peak

• Extracted chromatograms of the ions used to determine MS peak purity

  For the Extracted chromatograms, both Separate and Overlaid formats are available.
