MS Deconvolution

With the snippets under MS Deconvolution, you can add the results of your MS spectral deconvolution to your template. There are no configurable properties.

If deconvolution results are limited to a specific m/z range, this range is shown with a shaded background in the MS spectrum. See Basic settings in the processing method.

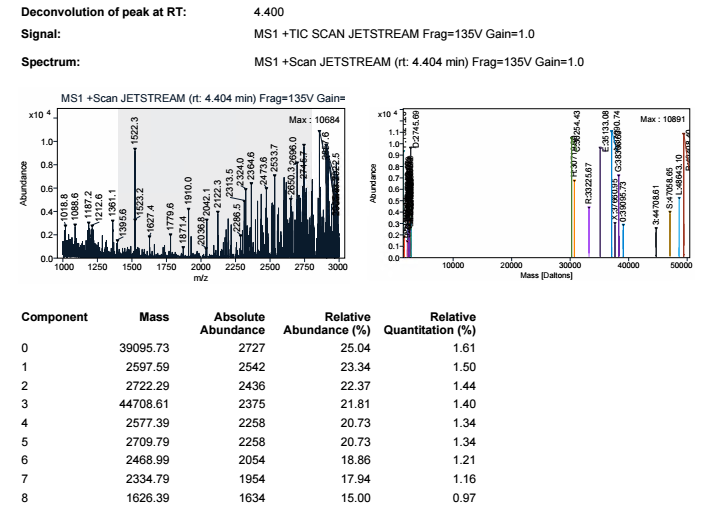

• MS Deconvolution Results Basic

  This snippet shows a summarized information on the components. It contains no details on the deconvoluted ion sets.

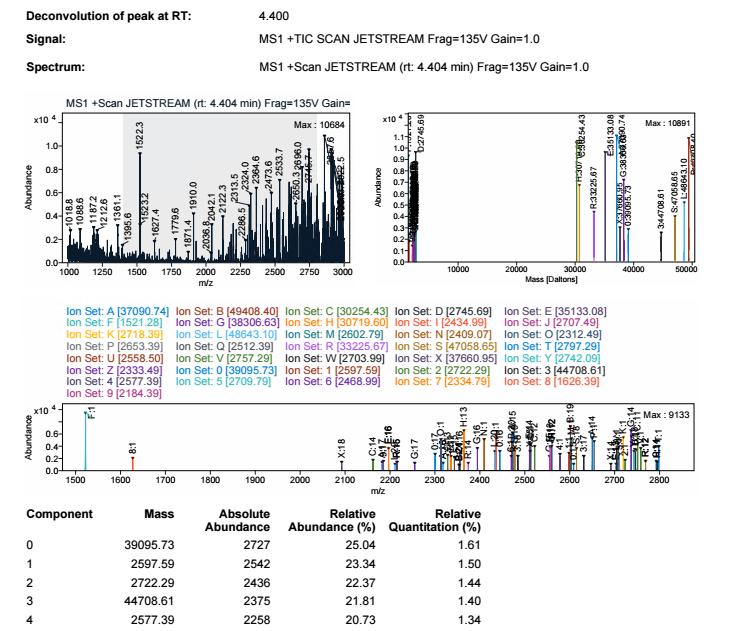

• MS Deconvolution Results Simple - Overlaid or Separated

  These snippets contain a graph (in overlaid or separated mode) with deconvoluted ion sets.

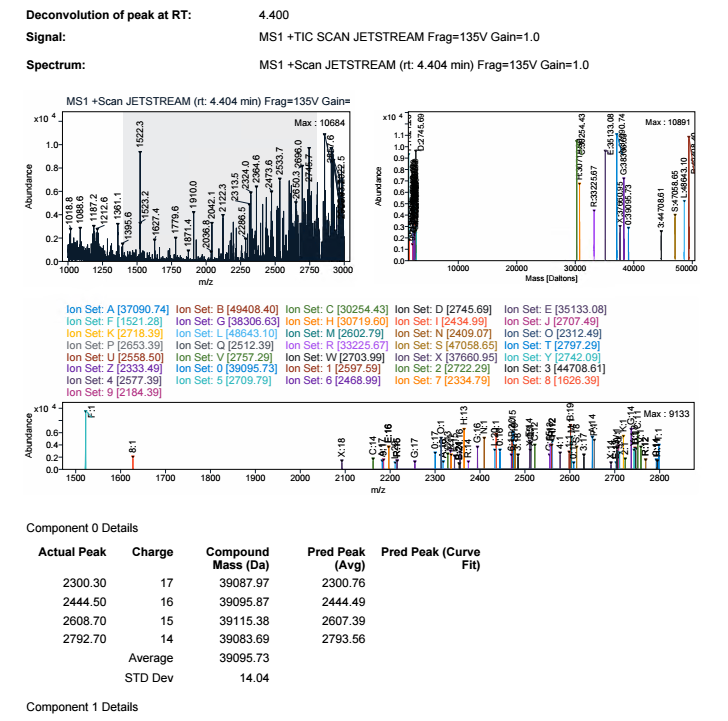

• MS Deconvolution Results Detailed - Overlaid or Separated

  These snippets show component details and contain a graph (in overlaid or separated mode) with deconvoluted ion sets.
