Show actuals

1. Click the Properties icon in the toolbar of the Contour Plot 2D window.

2. On the top page, under Display options, select Show actuals. Choose either Absolute response or Relative full response.

3. Confirm your settings.

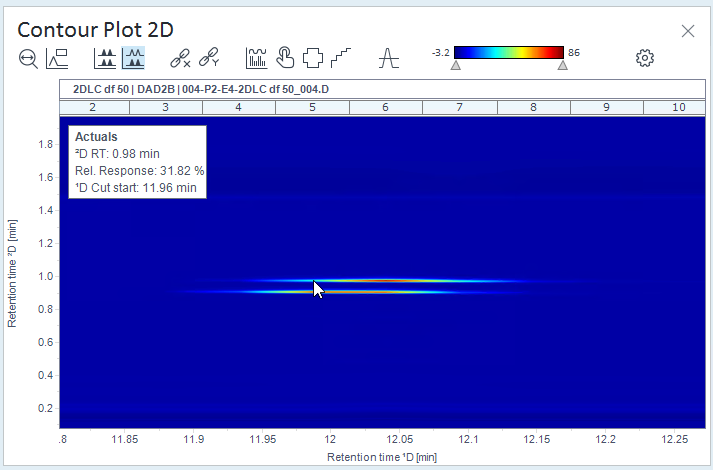

A fixed Actuals area is shown in the Contour Plot 2D. It lists the following values for the current mouse pointer location:

• ²D RT: retention time of the second dimension, in minutes

• Response: detector response - either as an absolute value or in % of the full response, depending on your selection.

• ¹D Cut start: cut start time in the first dimension
