Apply interpolation mode

By default, the data in the contour plot is displayed in an interpolated mode. In this mode, the x-values between data points of adjacent cuts and the y-values are interpolated for the display. This mode makes the contour plot easier to read.

  1. To deactivate the interpolation mode, click (Deactivate/Activate interpolation ) in the toolbar.

  2. To activate the interpolation mode, click again.

Non-interpolated mode: This display gives a better representation of raw data not using horizontal interpolation. This display should be preferred when reviewing data details and for verifying peak integration, boundaries, and assignment.

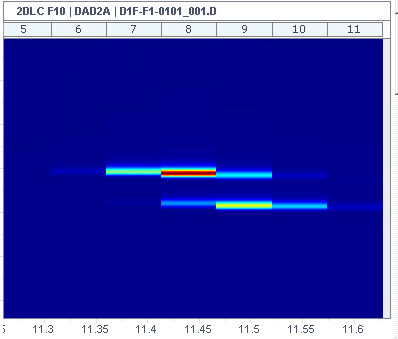

Example: Contour plot without interpolation
Figure Example: Contour plot without interpolation

Interpolated mode (default): This display should be preferred for getting a comprehensive visualization of data and compounds. However. interpolation may by nature create artifacts.

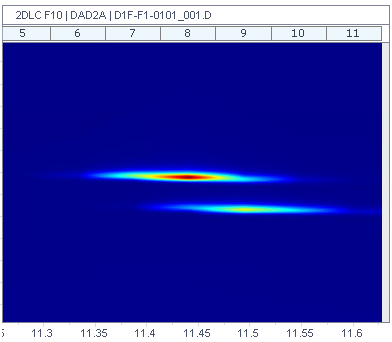

Example: Contour plot with interpolation
Figure Example: Contour plot with interpolation

NOTE

If you pinned many injections, the higher number of displayed interpolated contour plots may compromise the performance. Consider deactivating interpolation, or unpin injections.

×
