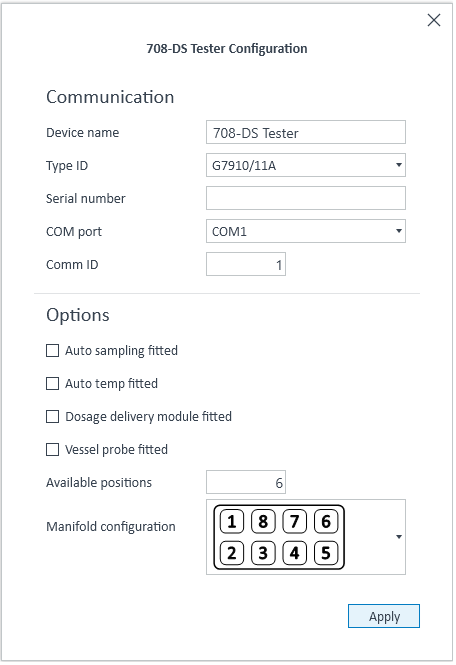

Configuration Options 708-DS Tester

Communication

Device Name: Define the name of the instrument.

Type ID: Define the configuration of the instrument.

Serial Number: Define the Serial Number for the instrument.

COM port: Define the COM Port the instrument is connected to (This can be viewed via Windows Device Manager).

Comm ID: Define the Comm ID (this can be viewed and/or defined by navigating to Instrument Settings on the 708-DS LCD Display).

Options

Select the options connected to the 708-DS Tester, from the tick boxes.

Available Positions: Define the number of active positions on the 708-DS.

Manifold Configurations: Select from one of the Manifold Configurations to be used.
