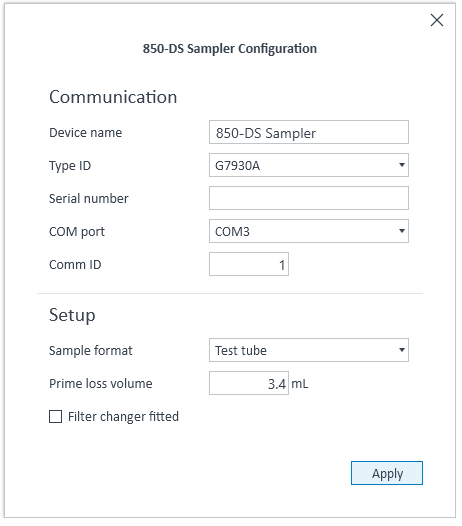

Configuration Options 850-DS Sampler

Communication

Device Name: Define the name of the instrument.

Type ID: Define the configuration of the instrument.

Serial Number: Define the Serial Number for the instrument.

COM port: Define the COM Port the instrument is connected to (This can be viewed via Windows Device Manager).

Comm ID: Define the Comm ID (this can be viewed and/or defined by navigating to Instrument Settings on the 850-DS LCD Display).

Setup

Sample Format: Define the sample tray configuration of your instrument.

Prime Loss Volume: Volume of the fluidic path from the sampling point to the place of analysis/collection including the cannula tubing and flow cells.

Filter Changer Fitted: Tick this box if you have a filter changer fitted to your 850-DS Sampler.
