Instrument Status Options for 708-DS Dissolution Bath

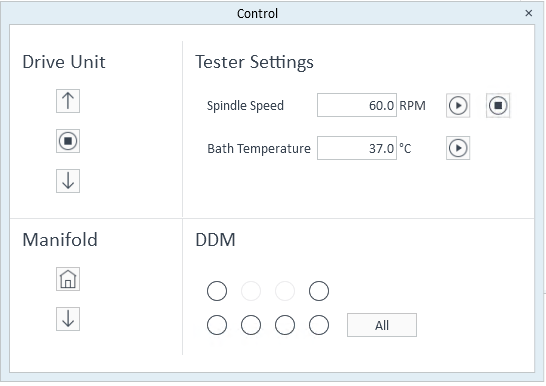

Right Click The 708-DS Tester and select Manual Control to enter Manual Control for the instrument.

The following options are available:

Drive Unit: These options allow for the raising or lowing of the drive unit of the 708-DS Dissolution Bath.

Manifold: These options allow for the homing and lowing of the Manifold of the 708-DS Dissolution Bath.

Tester Settings: These allow for the manual setting of Spindle Speed and/or Bath Temperature.

These can be enabled by entering a value into the field and clicking the Icon. Spindle Speed can be stopped by pressing the icon.

DDM: If the DDM Option is enabled in the instrument configuration, manual configuration of the DDM will become available. Click on a position to open the position specific DDM, or All to open all DDM simultaneously.
