Edit an SS420x method

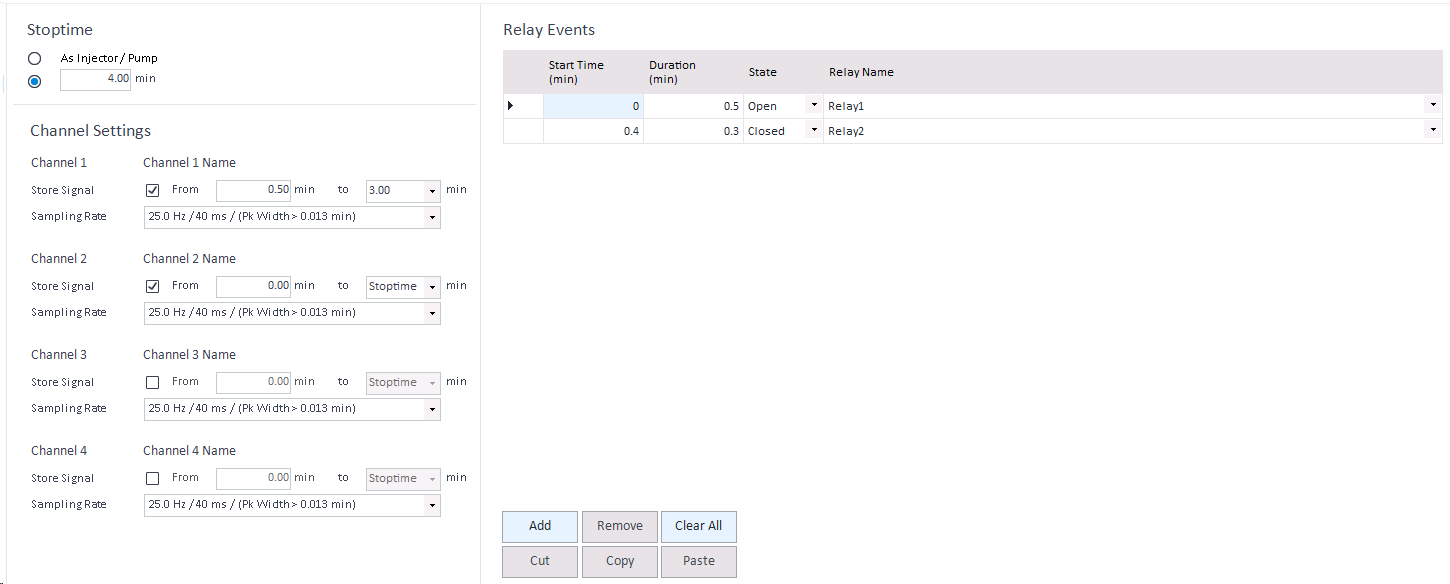

Activate the Acquisition Method ribbon and select the SS420x.
Enter the Stop Time in minutes for this device, or select As injector/Pump, if run time is specified by injector/pump.
For channel 1/2/3/4:
Set the check box on Store Signal to permit signal data collection on this channel.
Limit data collection of the particular channel by specifying From and To times in minutes. The default values for these fields will store the channel data for complete run time range.
Select a signal Sampling Rate between 0.1 Hz and 100 Hz from the drop-down list. Expected peak widths for each sampling rate are shown.
Add or edit Relay Events. If this method needs to control an external event, click the Add button on the Events table
Show details of taskShow details of task Enter an event Start Time in minutes. The event starts after the entered number of minutes into the run.
Enter an event Duration in minutes. The relay is switched for the specified time to the given state.
Select State the relay is switched to.
-
Click Relay Name and select a relay from the list.
If needed, add or edit additional events. You can also cut, copy, paste, remove (delete), or clear all (delete all) events.
Save the method.
Table with available settings:
| Base frequency [Hz] | Sampling frequency [Hz] | Sampling period [ms] | Minimum peak width [min] |
Sampling Rate as displayed |
|---|---|---|---|---|
| 10 | 10.0006 |
99.9936 |
0.033 | 10 Hz / 100 ms / (Pk Width > 0.033 min) |
|
5.00032 | 199.987 | 0.067 |
5 Hz / 200 ms / (Pk Width > 0.067 min) | |
| 2.00013 |
499.968 | 0.167 | 2 Hz / 500 ms / (Pk Width > 0.167 min) | |
| 1.00006 |
999.936 |
0.333 | 1 Hz / 1000 ms / (Pk Width > 0.333 min) | |
|
0.500032 | 1999.87 | 0.667 |
0.5 Hz / 2000 ms / (Pk Width > 0.667 min) | |
| 0.200013 |
4999.68 |
1.667 | 0.2 Hz / 5000 ms / (Pk Width > 1.667 min) | |
|
0.100006 | 9999.36 | 3.333 |
0.1 Hz / 10000 ms / (Pk Width > 3.333 min) | |
| 25 |
25.008 |
39.9872 | 0.013 | 25 Hz / 40 ms / (Pk Width > 0.013 min) |
| 12.504 |
79.9744 |
0.027 | 12.5 Hz / 80 ms / (Pk Width > 0.027 min) | |
|
8.336 | 119.962 | 0.040 |
8.3 Hz / 120 ms / (Pk Width > 0.040 min) | |
| 5.0016 |
199.936 | 0.067 | 5 Hz / 200 ms / (Pk Width > 0.067 min) | |
| 2.5008 |
399.872 |
0.133 | 2.5 Hz / 400 ms / (Pk Width > 0.133 min) | |
|
1.00032 | 999.68 | 0.333 |
1 Hz / 1000 ms / (Pk Width > 0.333 min) | |
| 0.50016 |
1999.36 | 0.666 | 0.5 Hz / 2000 ms / (Pk Width > 0.667 min) | |
| 0.25008 |
3998.72 |
1.333 | 0.25 Hz / 4000 ms / (Pk Width > 1.333 min) | |
|
30 | 30.0019 |
33.3312 |
0.011 | 30 Hz / 33.3 ms / (Pk Width > 0.011 min) |
|
15.001 | 66.6624 | 0.022 |
15 Hz / 66.7 ms / (Pk Width > 0.022 min) | |
| 10.0006 |
99.9936 | 0.033 | 10 Hz / 100 ms / (Pk Width > 0.033 min) | |
| 5.00032 |
199.987 |
0.067 | 5 Hz / 200 ms / (Pk Width > 0.067 min) | |
|
2.00013 | 499.968 | 0.167 |
2 Hz / 500 ms / (Pk Width > 0.167 min) | |
| 1.00006 |
999.936 | 0.333 | 1 Hz / 1000 ms / (Pk Width > 0.333 min) | |
| 0.500032 |
1999.87 |
0.667 | 0.5 Hz / 2000 ms / (Pk Width > 0.667 min) | |
|
50 | 50.0801 |
19.968 |
0.007 | 50 Hz / 20 ms / (Pk Width > 0.007 min) |
|
25.0401 | 39.936 | 0.013 |
25 Hz / 40 ms / (Pk Width > 0.013 min) | |
| 12.52 |
79.872 | 0.027 |
12.5 Hz / 80ms / (Pk Width > 0.027min) | |
| 8.34669 |
119.808 | 0.040 | 8.3 Hz / 120 ms / (Pk Width >0.040 min) | |
| 5.00801 |
199.68 |
0.067 | 5 Hz / 200 ms / (Pk Width > 0.067 min) | |
|
2.50401 | 399.36 | 0.133 |
2.5 Hz / 400 ms / (Pk Width > 0.133 min) | |
| 1.0016 |
998.4 | 0.333 |
1 Hz / 1000 ms / (Pk Width > 0.333 min) | |
| 0.500801 |
1996.8 | 0.666 |
0.5 Hz / 2000 ms / (Pk Width > 0.667 min) | |
| 60 |
60.0962 |
16.64 | 0.006 |
60 Hz / 16.7 ms / (Pk Width > 0.006 min) |
| 30.0481 |
33.28 | 0.011 |
30 Hz / 33.3 ms / (Pk Width > 0.011 min) | |
| 15.024 |
66.56 | 0.022 |
15 Hz / 66.7 ms / (Pk Width > 0.022 min) | |
| 10.016 |
99.84 | 0.033 |
10 Hz / 100 ms / (Pk Width > 0.033 min) | |
| 6.00962 |
166.4 | 0.055 |
6 Hz / 166.7 ms / (Pk Width > 0.055 min) | |
| 5.00801 |
199.68 | 0.067 |
5 Hz / 200 ms / (Pk Width > 0.067 min) | |
| 2.00321 |
499.2 | 0.166 |
2 Hz / 500 ms / (Pk Width > 0.167 min) | |
| 1.0016 |
998.4 | 0.333 |
1 Hz / 1000 ms / (Pk Width > 0.333 min) | |
| 0.500801 |
1996 | 0.666 |
0.5 Hz / 2000 ms / (Pk Width > 0.666 min) | |
| 100 |
100.16 |
9.984 | 0.003 |
100 Hz / 10 ms / (Pk Width > 0.003 min) |
| 50.0801 |
19.968 | 0.007 |
50 Hz / 20 ms / (Pk Width > 0.007 min) | |
| 25.0401 |
39.936 | 0.013 |
25 Hz / 40 ms / (Pk Width > 0.013 min) | |
| 16.6934 |
59.904 | 0.020 |
16.7 Hz / 60 ms / (Pk Width > 0.020 min) | |
| 10.016 |
99.84 | 0.033 |
10 Hz / 100 ms / (Pk Width > 0.033 min) | |
| 5.00801 |
199.68 | 0.067 |
5 Hz / 200 ms / (Pk Width > 0.067 min) | |
| 2.00321 |
499.2 | 0.166 |
2 Hz / 500 ms / (Pk Width > 0.166 min) | |
| 1.0016 |
998.4 | 0.333 |
1 Hz / 1000 ms / (Pk Width > 0.333 min) | |
| 120 |
120.563 | 8.2944 | 0.003 |
120 Hz / 8.3 ms / (Pk Width > 0.003 min) |
| 60.2816 |
16.5888 | 0.006 | 60 Hz / 16.7 ms / (Pk Width > 0.006 min) | |
| 30.1408 |
33.1776 |
0.011 | 30 Hz / 33.3 ms / (Pk Width > 0.011 min) | |
|
20.0939 | 49.7664 | 0.017 |
20 Hz / 50 ms / (Pk Width > 0.017 min) | |
| 12.0563 |
82.944 | 0.028 |
12 Hz / 83.3 ms / (Pk Width > 0.028 min) | |
| 10.0469 |
99.5328 | 0.033 | 10 Hz / 100 ms / (Pk Width > 0.033 min) | |
| 4.01878 |
248.832 |
0.083 | 4 Hz / 250 ms / (Pk Width > 0.083 min) | |
|
2.00939 | 497.664 | 0.166 |
2 Hz / 500 ms / (Pk Width > 0.166 min) | |
| 1.00469 |
995.328 | 0.332 | 1 Hz / 1000 ms / (Pk Width > 0.333 min) |
