Export a graph with data of the 2nd dimension

Several export functions are available for graphs with ²D data. If not stated otherwise, the following descriptions are valid for the Chromatograms ²D window as well as for Diagnostic Signals, Contour Plot 2D, MS Spectrum and UV Spectrum.

  1. Select the required signals and cuts.

  2. Chromatograms ²D and Diagnostic Signals: Choose a suitable display mode.

  3. Right-click the graph, and select one of the following commands from the context menu:

    • Copy to clipboard: After using this command, you can paste the content as a graphic into an Office software such as Word or PowerPoint, or into any image editing software.

      If you paste directly into an Office software, the content is pasted as a vector graphic, which can be displayed in a higher quality. If you paste into an image editing software such as Paint, the vector information is lost and only a pixel graphic with a lower quality is pasted.

    • Export to file ...: In a Select Folder dialog, you can choose the folder and the file type for the graphic file. If required, click New folder to create a new folder.

      Choose the *.emf file type to save as a vector graphic for usage in Office software such as Word or PowerPoint. Choose *.png to save as a pixel graphic.

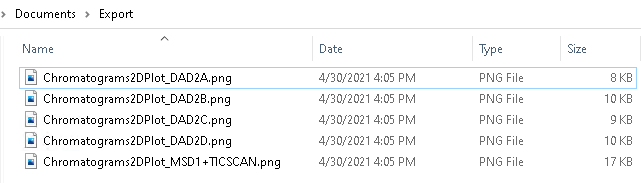

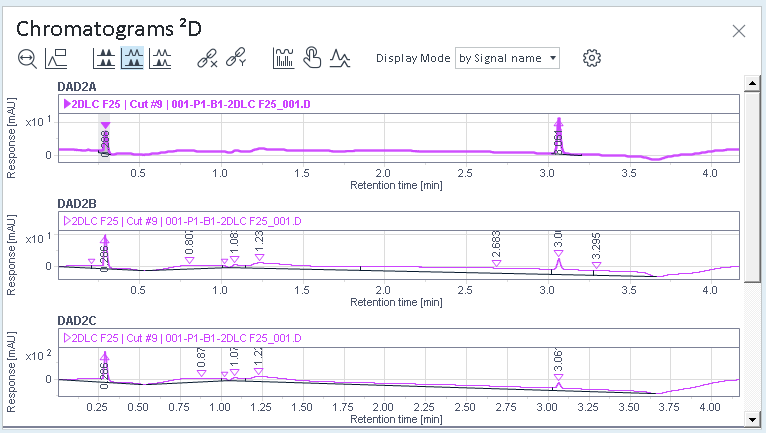

Chromatograms ²D and Diagnostic Signals: If you export the content window that shows several separate panes, for example with the display mode by Signal name, separate images are generated for each pane. See the following example.

×
