Indicators for manual integration in the 2nd dimension

An asterisk in the Sampling Table or Contour Plot 2D window indicates that manual modifications have been applied in the second dimension:

• An asterisk (*) appended to the data file name indicates that the data contains manual modifications for one or more signals.

• An asterisk (*) appended to the signal name indicates that there are manual modifications related to that signal.

• An asterisk (*) inside the Contour Plot 2D indicates that the 2D peak is based on a manual modification.

The asterisk can indicate both a manual 2D peak assignment (merge/split modification) in the contour plot, or a manual integration correction in an individual cut. Details on the type of modification are shown in the tooltip of the asterisk in the Sampling Table window.

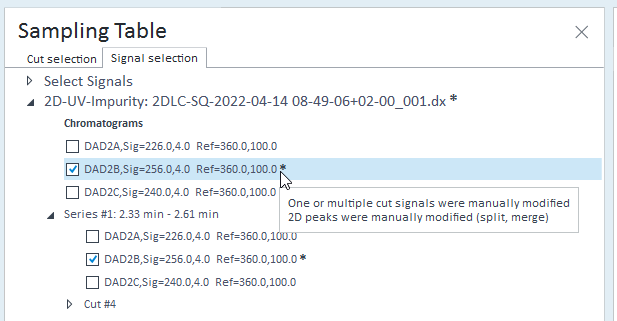

Figure Data file name and signal name with asterisk

Figure Tooltip with details on the type of modification

Figure 2D peak in Contour Plot 2D with asterisk
