2D Compounds

The 2D Compounds snippet shows information on identified two-dimensional compounds. It contains the following information:

• Hidden table with expressions to map the ²D peaks to the 2D compounds.

  The methods used in these expressions are provided by a custom assembly that is available in this snippet.

• Details and results on the 2D compound

• Peak details for ²D peaks

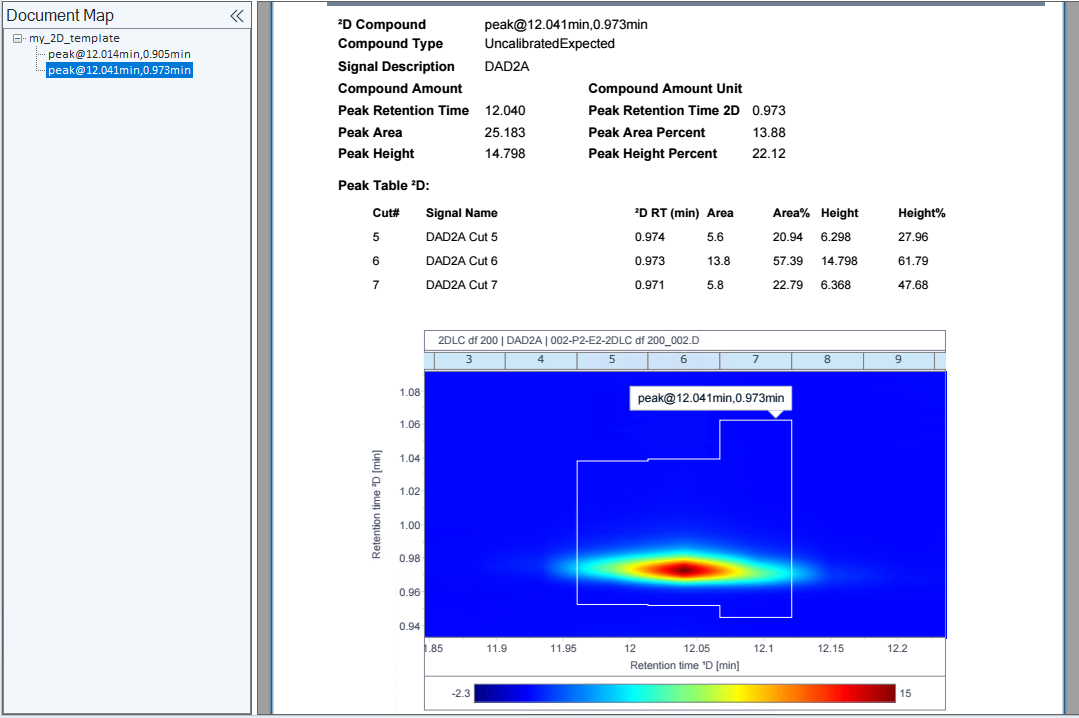

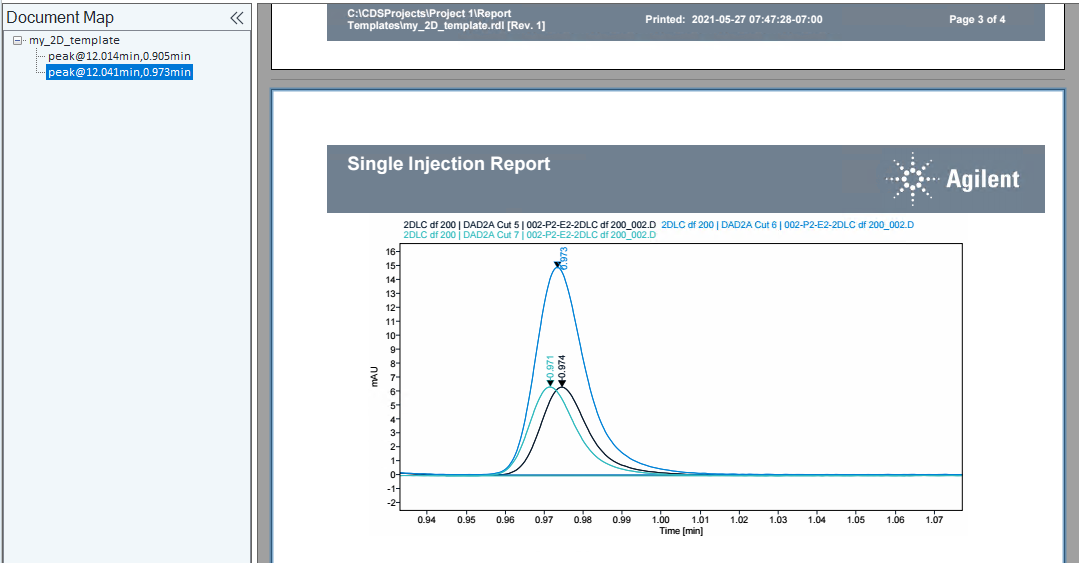

• Contour plot and cut chromatograms for all 2D signals.

• Hidden table with expressions to clear mappings.

This snippet shows the information on ²D results that is also part of the default template 2DLC_Single_Injection_Compounds_Report.rdl
