Change Signal Display settings

Signal display settings specify the range of the Autoscale. The default settings are 60 minutes on the X-axis and a Y-axis range large enough to encompass all signals.

1. Open the Online Signals window.

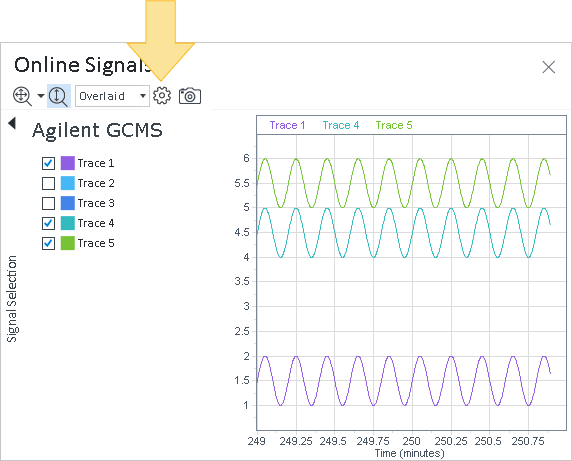

2. Click Signal Display Settings .




3. Select the signal you wish to scale.

4. Select the Predictable range check box.

5. Adjust the corresponding Y-axis in the space provided.

6. Edit the time in minutes you want displayed in the X-axis range.

7. Click OK.
