View fraction marks

If a fraction collection or recovery device is included in your instrument configuration, view the Online Signals chart to see a fraction mark with the fraction start, fraction end, and a color band to show which fraction of the chromatogram has been collected.

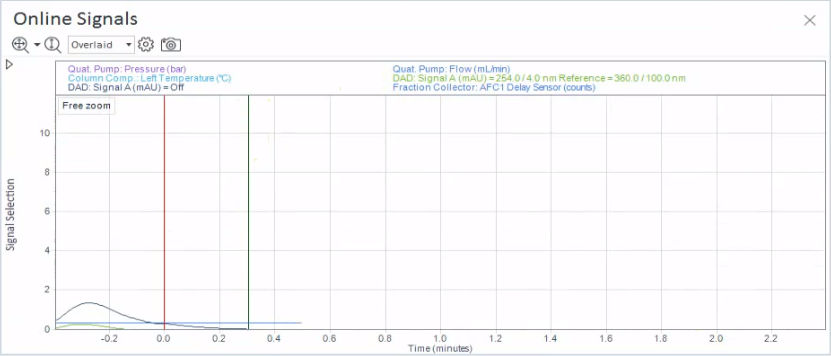

When a fraction collection run starts and fraction collection is activated in the method, the Online Signals chart displays a dark green vertical fraction marker, indicating that the fraction has started.

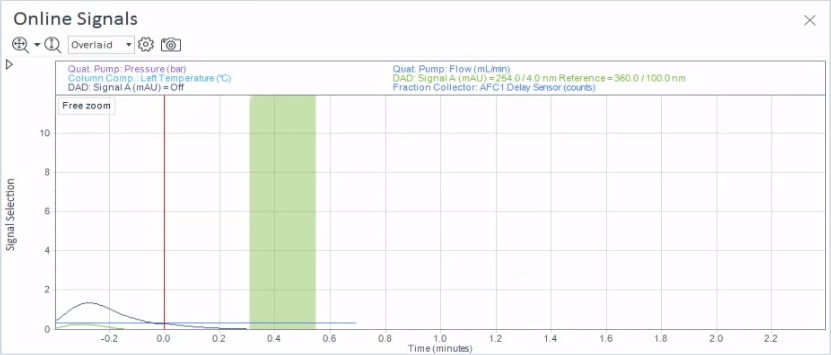

Once the fraction collection ends, a light green bar displays, indicating the amount of time the fraction has been collected.
