Delete extracted spectra

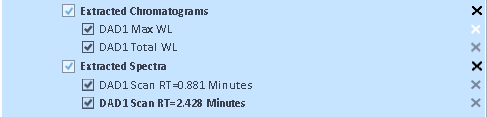

1. In the injection tree, expand the details for the relevant injection.

2. To hide an extracted chromatogram or spectrum temporarily, clear the check box for the relevant item.

   To hide all items temporarily, clear the check box for Extracted Chromatograms or Extracted Spectra.

3. To delete a single chromatogram or spectrum, click next to it.



   To delete multiple items, select the relevant check boxes, then click next to Extracted Chromatograms or Extracted Spectra. You can delete either all selected or all unselected items.



Delete chromatograms or spectra extracted from the 2nd dimension
