Attractors

Many of the manual integration tools interact with attractors. Attractors are usually visible on the signal and at baseline points of the adjacent elements. They are indicated by four small arrows. When the cursor approaches an attractor, it will automatically snap to the attractor. This allows you to position new elements directly on the signal or directly attached to adjacent baseline segments.

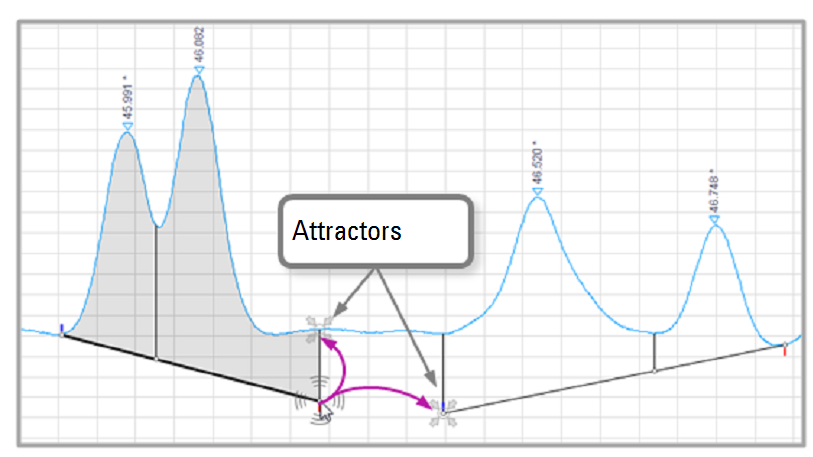

Attractor examples when moving a baseline point

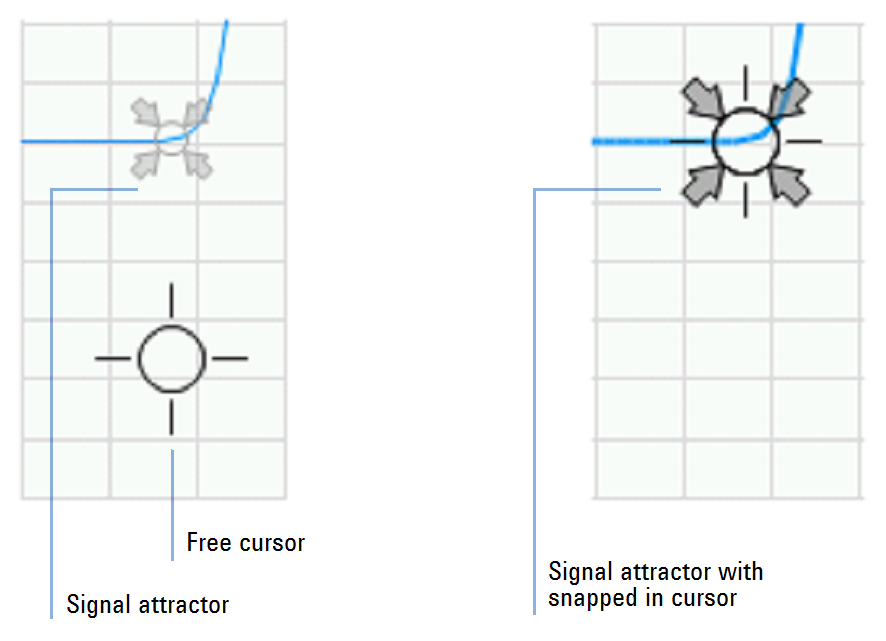

Active Attractor with snapped in cursor



Attractor example when creating a new baseline
