Manual Integration

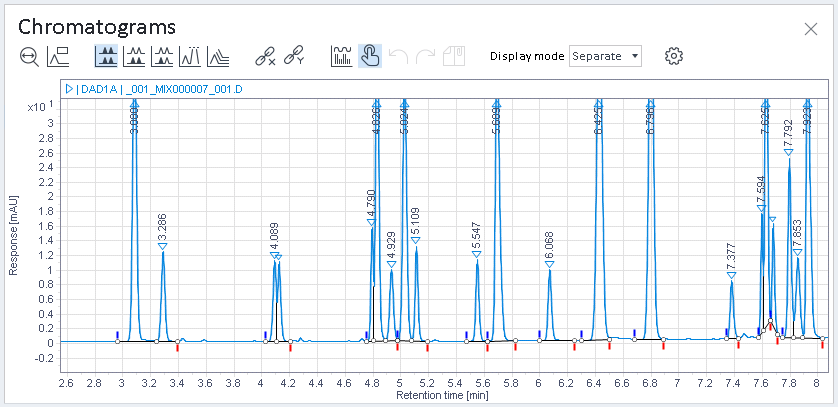

With manual integration switched on, OpenLab CDS allows to change the integration of individual peaks by interactively deleting the peak or editing the peak start, peak end, and peak baseline.
This type of change is called manual integration correction. The manual integration corrections can be stored in a processing method (see Apply manual integration corrections to other injections).
The following table compares manual integration with automated integration and shows how each of them affects your work.
Manual integration | Automated integration | |
|---|---|---|
Visibility |
Graphically visible in a chromatogram with activated manual integration If parameters have been saved in the method, they are listed in the Integration Events > Manual Integration node of the processing method | Parameters are listed in the Integration Events > Standard or Advanced node of the processing method |
Edited via ... | Graphical interaction | Values in the Integration Events section of the processing method. Graphical update of integration events, if Edit timed events is enabled in a chromatogram. |
|
Persistence of peak baseline construction | Saved with the individual injection. If parameters have been saved in the method: Applied if you reprocess. Deleted if you reprocess with the Clear corrections option. | Saved with the individual injection. Updated if you reprocess. |
|
Affected object | If parameters have been saved in the method: all injections that are processed with this method. Otherwise: only the individual injection | All injections that are processed with this method |
