Collection Order (Modular LC Fraction Collector)

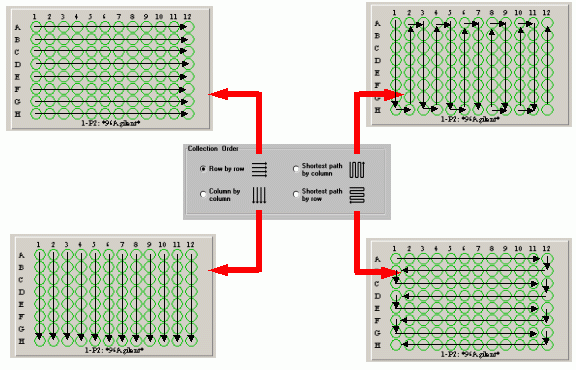

Four different collection order strategies are available. Vial and plate trays can be filled either row by row, column by column or meandering either by row or by column.

If a tube tray is installed, the collection order is Column by column by default.

If the Treat as 4 × 96 check box in Tray Configuration is marked, the Collection Order setting affects each of the four 96-well quadrants separately; each quadrant is filled separately before the next one is used.
