Multi Spectra
Via the settings in
this page, you can influence the appearance of the spectra.
Display format |
| Select the format in which multiple spectra are
compared. In the Separate format, multiple spectra are shown in
separate graphs under each other or next to each other (depending on the
# Graphics setting in the
Layout
page). # Graphics set to
1:
# Graphics set to
4:
In the Overlaid format, multiple spectra are shown in an
overlaid graph.
In the Stacked format, you can additionally set the offset
for the wavelength axis and response axis. This offset is added as a space
between the different graphs. The axis values refer to the first spectrum in

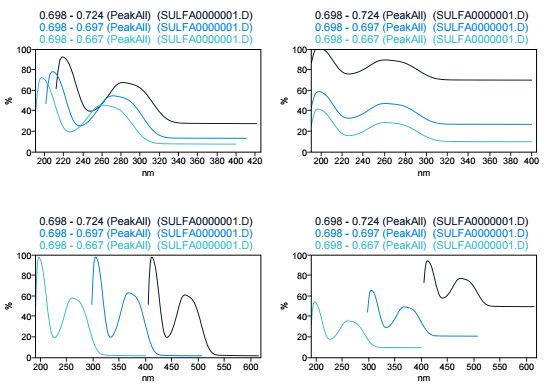

the lower left corner. See the following examples:
In
the As Iso Plot format, the spectra are
displayed with a color coding for the absorbance value. Multiple spectra are
shown under each other.
|
Group Multiple
Spectra |
| With the grouping option
Group per Compound or
Peak, you can arrange the different spectra corresponding to their
origin. The resulting graph or graphs depend on the selected
Display format:
In the Separate format, the
graphs for all spectra are shown separately, but the graphs belonging to
different compounds are distinguished by different background colors. These
group colors are set by the system; you cannot change them.
In the Overlaid format, one
graph is shown for each compound; the spectra in each graph are
overlaid. In the Stacked format, one graph is shown for each compound;
the spectra in each graph are
stacked. |
