Topology
The Topology section is relevant only to the fraction collector cluster (FCC).
Selected Topology |
|
NOTE
If no topology can be configured from the available modules, an error message is displayed.

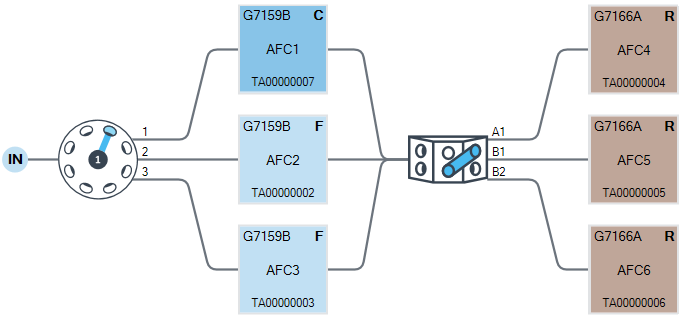

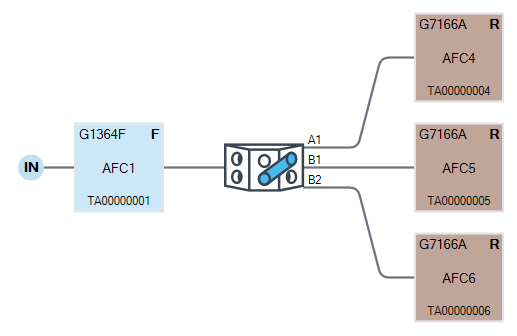

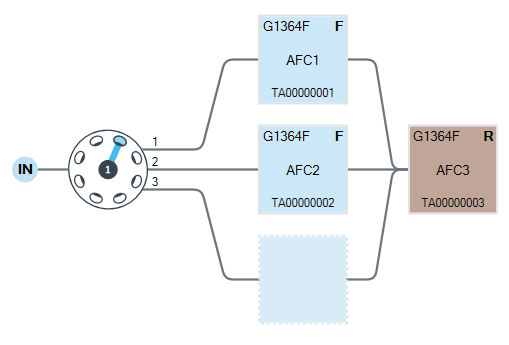

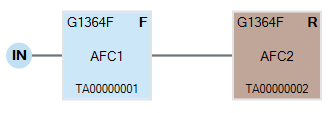

The graphic shows the selected topology of the fraction collector cluster:
| The inlet of the eluent to the fraction collector cluster. |
| A 1290 Infinity II Preparative Open-Bed Sampler/Collector, denoted by the C in the top right corner and the blue background. The module type, module name and serial number are as given in the Module List
|
| A fraction collector, denoted by the F in the top right corner and the light blue background. The module type, module name and serial number are as given in the Module List. |
| A recovery collector, denoted by the R in the top right corner and the pink background. The module type, module name and serial number are as given in the Module List. |
You can change the fraction collector at each position in the cluster either by right-clicking on the position and selecting a different fraction collector from the list or by dragging and dropping a fraction collector from another position.
NOTE
A G7166A used as a fraction collector cannot be followed by any other module.
