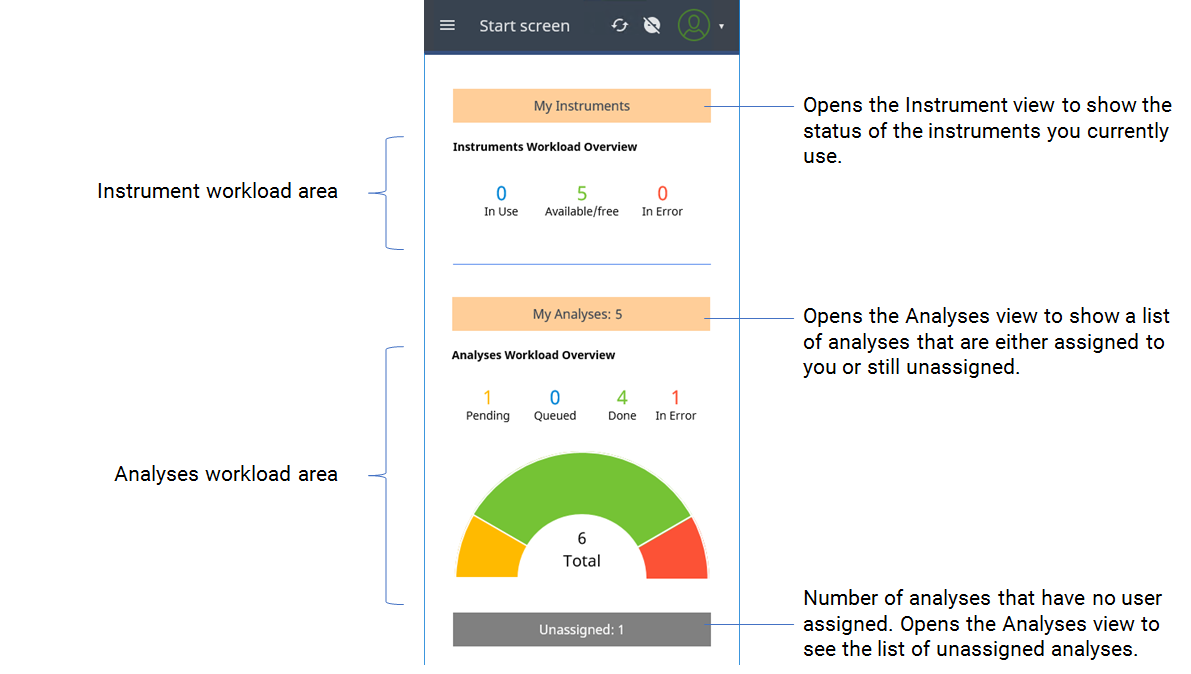

Start screen
The Start screen gives an overview of your instruments and their states, as well as your personal or entire lab queue of analyses and their states. It also serves as an access point to more detailed information and respective toolsets. What you can see here depends on your Sample Scheduler privileges.

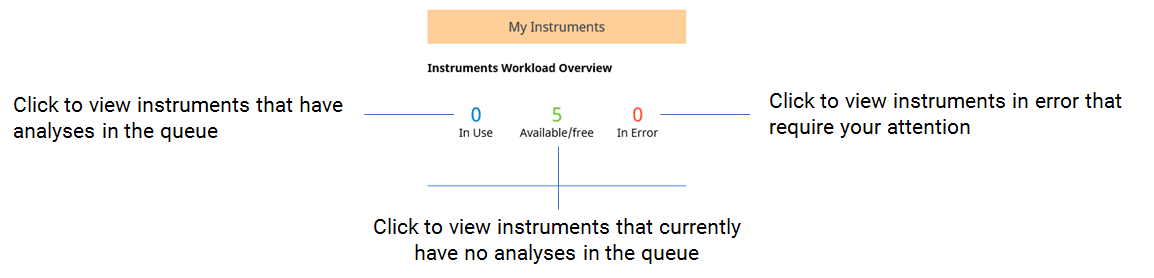

Instrument workload area
Displays the number of instruments you have access to and that are currently in use, free, or in error. This area is only visible if you have the privilege View lab manager start page.

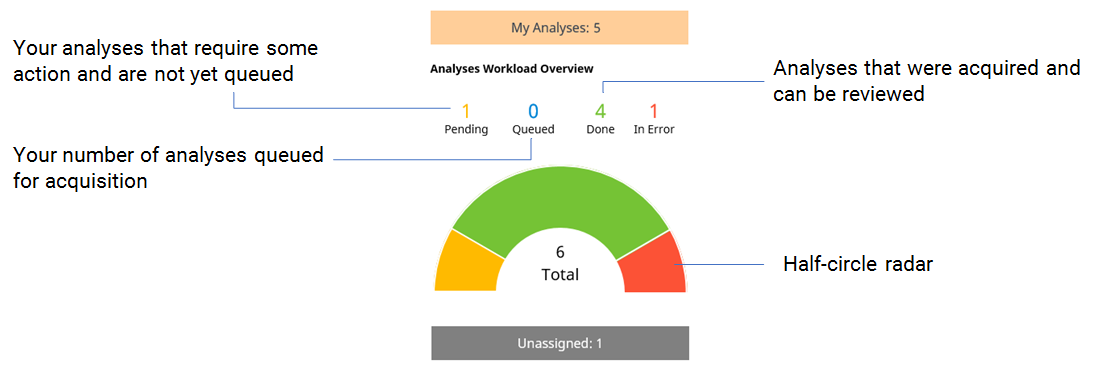

Analyses workload area
Displays the number of analyses you have access to and that have the following states:
Pending: analyses that are not yet scheduled
Queued: analyses that are in progress or submitted to an instrument
Done: analyses that are completed and can be reviewed
-
In error
Half-circle radar
Overview of your authorized analyses workload categorized by state in the analysis workflow. Click a segment to view a list of analyses filtered by the state.
The start screen shows workload information on:
