Use Custom Parameters

Custom parameters used in your Sequence table are defined in the Control Panel.

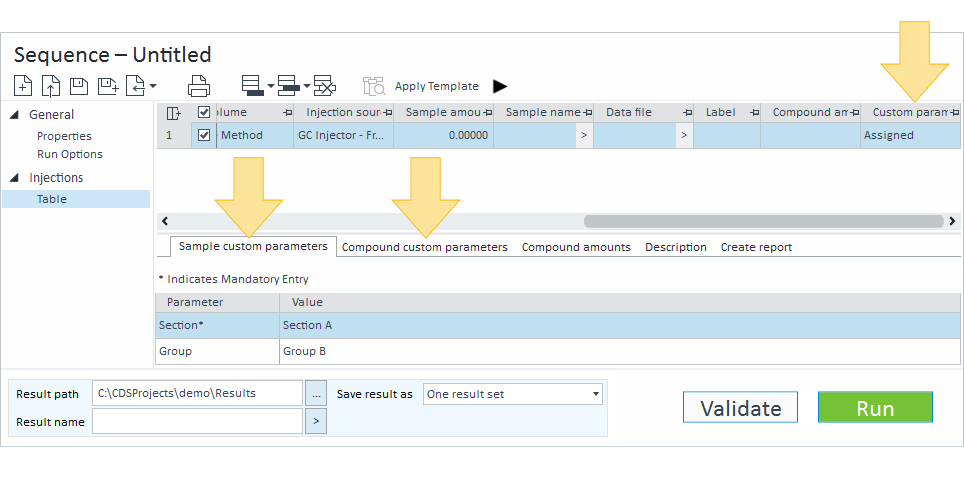

Depending on the configuration, Sample custom parameters may appear in the sequence table or in the window below it. Compound custom parameters always appear in the window below.

1. Create custom parameters if you have not done so already.

2. To show or hide optional sample custom parameters:

   Click Show column chooser .



3. Select Sample Custom Parameters. You can hide parameters that are not mandatory.

4. To show custom parameters and associated values in the window below the sequence table: Select the relevant sequence line.



5. You can:

   • Keep all default values.

   • Click in the Value column to enter, change, or delete the value for that parameter. Mandatory parameters must have a value.

NOTE

For sample custom parameters of type Advanced DA Option, a parameter editor helps you to select the needed value.
