Add your own calculations to the results

The Custom Calculation Editor allows you to create formulas and calculate results that are not provided by OpenLab CDS.

Preparations

• To be able to carry out the procedure as described, you need the following privileges. Privileges are configured in the Control Panel.

  • Project Management  > Edit content of project

  • Processing Method  > Edit custom calculation parameters

  • Data Processing  > Launch Custom Calculation Editor

• If the project enforces method approval, the method status must be Generic. For details, see Method approval.

1. In Data Analysis, select the Data Processing view.

2. In the Processing ribbon tab, click Launch CC Designer .

3. Prepare your calculations with the Custom Calculation Editor and save them as a .ccf file.

4. Add the .ccf file to your processing method.

5. Reprocess the data.

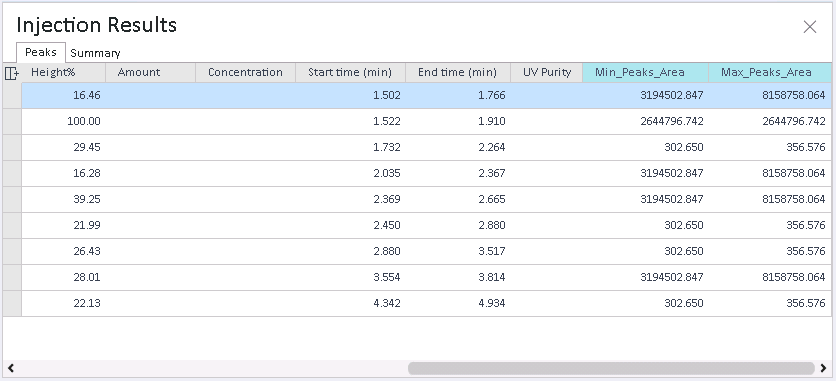

6. View the results in the Injection Results window.

   • Results for peaks, groups, or compounds are shown in the Peaks tab. The corresponding columns have a light blue header.

   • Results for signals and injections are shown in the Summary tab.
