Run an Evaluation Tune from the Dashboard
The Evaluation tune report evaluates the results of the most current autotune file with acceptable parameter value limits and presents a score of OK, High, or Low for each parameter.

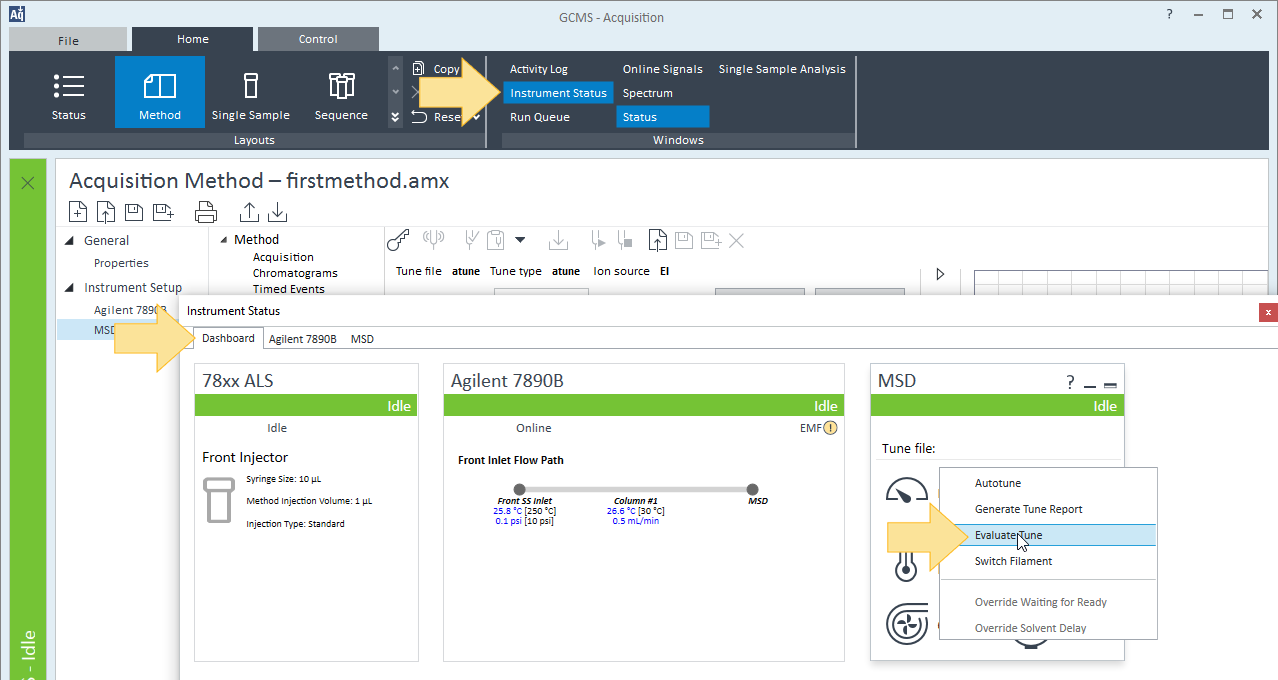

- Click Instrument Status to display the Dashboard for the MSD.
- If the instrument is in the idle state, right click in the Tune File parameter area and select Evaluate Tune. This context menu is not available if the tune control is locked.
Once you select Evaluate Tune, the tune control locks, the MSD status changes to tuning, and the tune evaluation starts. When the tune evaluation completes, a pdf tune report opens.
Alternatively, see Run an Autotune for how to run autotune when the instrument is in orange Tuning status.
