Build an injection pattern
Add, delete, or rearrange samples in your template. An injection pattern has three parts:
Start - Run once at the onset of the sequence.
Cycle - Run a repeating pattern for all samples in the sequence table.
End - Run once following the completion of the cycle.
Click Add
to add a sample type
to the Start, Cycle,
or End section.
Click Add
to add an action to the Start, Cycle, or End section.

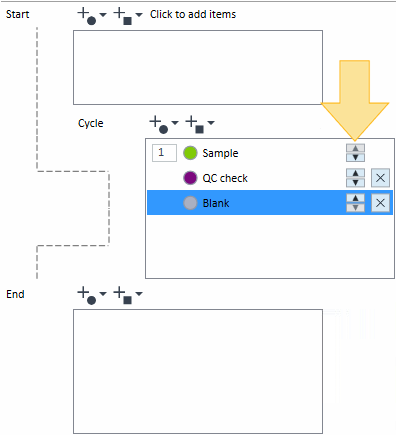

Samples in the Start, Cycle, or End of the injection pattern can be rearranged. Use the arrows to the left of a sample to move it up or down in the sequence.

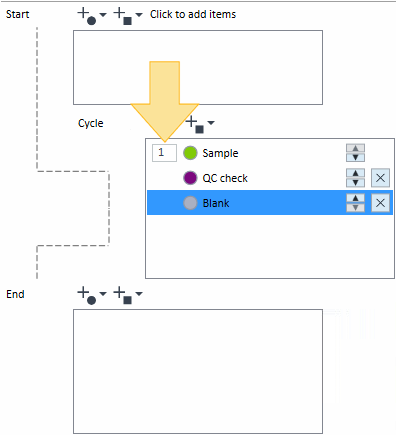

For a Sample, specify how many sample injections you want per cycle.
(Optional) Click Remove from the sequence template
to remove steps from your injection pattern. The Sample
cannot be removed from your template.
