Print a sequence

Printing is only available once the sequence has been saved.

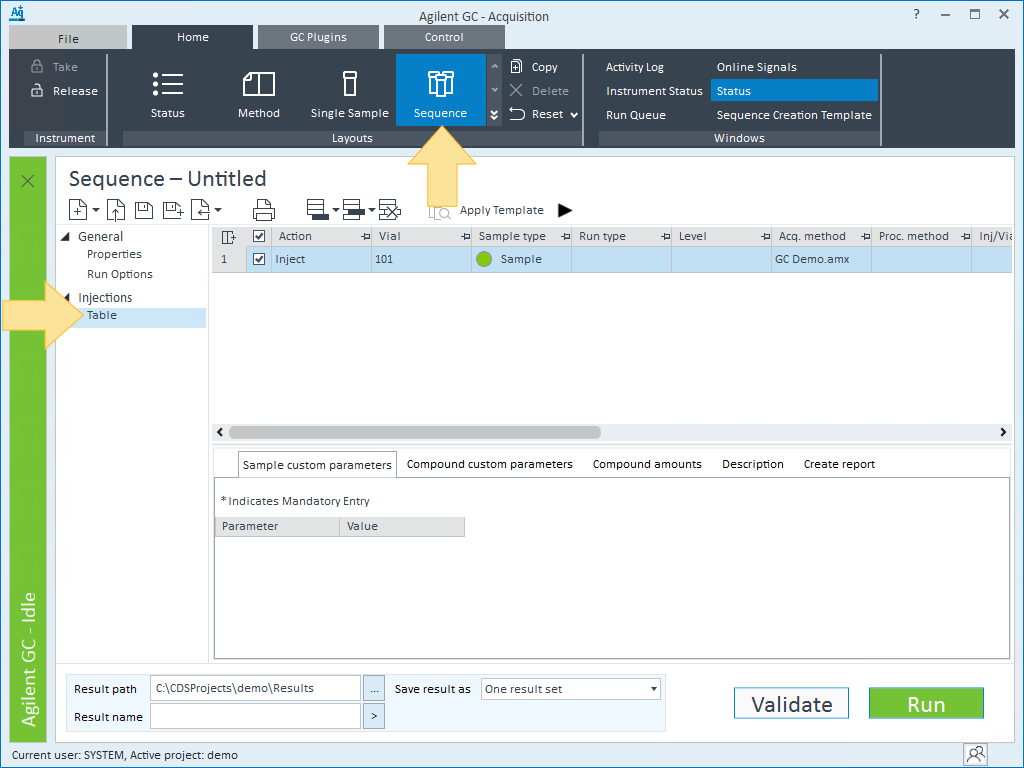

1. Click Sequence, and then click Table. The name of the current sequence is displayed. To load a different sequence, open and navigate to the sequence you want to print.

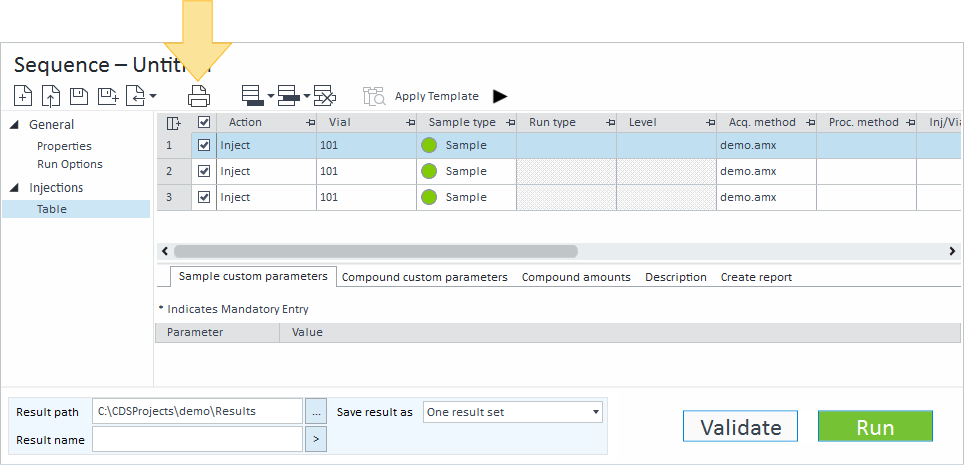

2. Click Print. The Sequence Report window opens.


3. If your sequence has not been saved, click Save to save the sequence with the same name or Save As to save it with a new name.

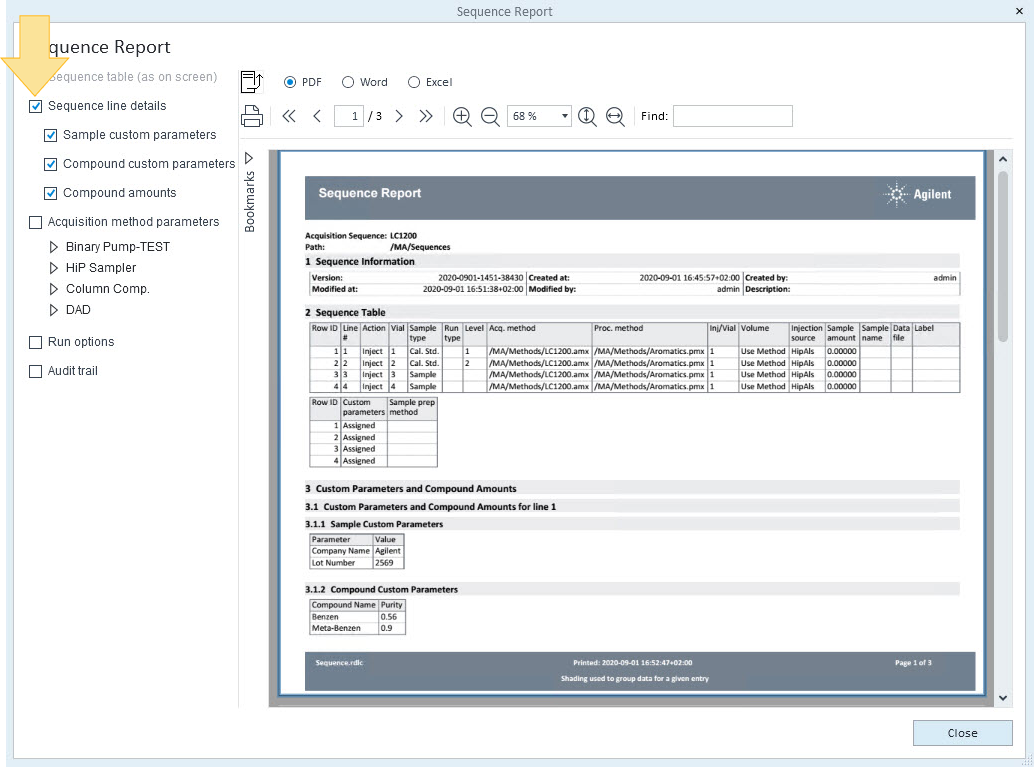

4. Select the check boxes to choose which information to include in your report:

   • Create Report: includes the parameters set in the create report lines of the sequence

   • Acquisition method parameters: allows you to choose which specific module parameters to include in the report

   • Run options: includes the run options set for the sequence

   • Audit trail: includes all Sequence Audit Trail information that has been collected for the sequence

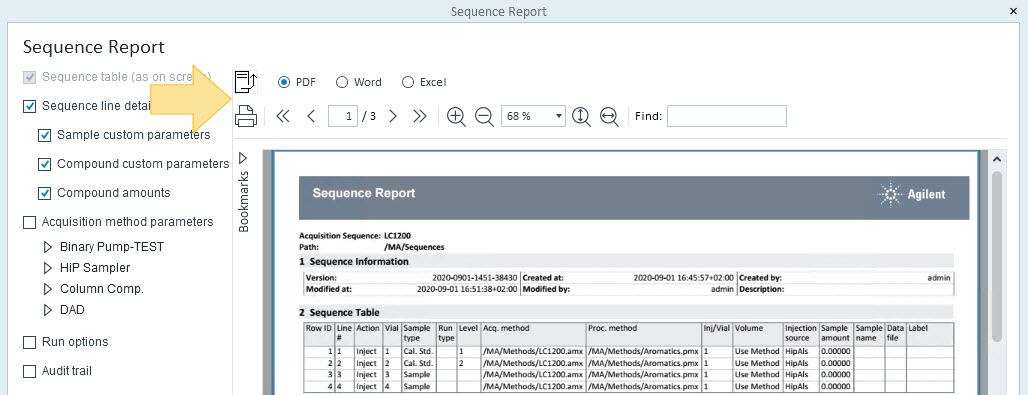

5. In the preview toolbar, click Print to print the report or Export to export the report to Excel, PDF, or Word.



6. Follow the prompts to print or save the report.
