Edit a method (LC/MS)

You edit a method to configure method parameters and instrument configuration settings for your instrument and method.

You need to make sure that your method's parameters and instrument configuration are compatible with your current instrument hardware and resources. The system compares your method configuration and the actual instrument configuration before allowing it to be used to acquire data.

You can have up to four different scan segments that are acquired for the entire run. You can also have multiple SIM segments that are acquired starting at the time that you enter in the Acquisition Parameters table.

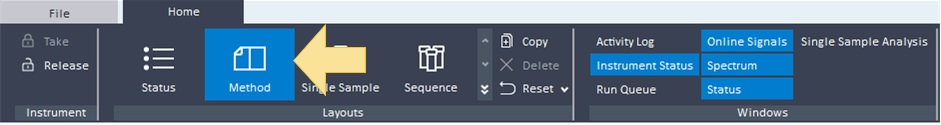

  1. Click Method.

  1. Set the Properties. Enter a Description for this method. If you want, select the Audit Trail Activated check box.
  2. Set the LC parameters. See the online Help for LC for more information.
  3. In the Acquisition Method window in the navigation pane, click Instrument Setup > SQ.
  4. In the navigation pane click Method > Acquisition.
  5. Set up the Global Parameters. See Edit MS Global Parameters (LC/MS) for more information.
  6. Edit the Acquisition Parameters Table.
  7. Edit the Source parameters.
  8. Edit the Chromatograms table.
  9. Edit the Timetable.
